Azure Stack Hub

Dell Integrated System for Microsoft Azure Stack Hub

Azure Stack Hub

Run your own private, autonomous cloud — connected or disconnected with cloud-native apps using consistent Azure services on-premises.

Run connected or disconnected from the public cloud
Comply with data sovereignty laws and regulations
Run Azure-consistent Infrastructure-as-a-Service (IaaS) and Platform-as-a-Service (PaaS)
Build cloud-native modern apps

1 - Release Artifacts

1.1 - Release Artifacts for 2504

1.1.1 - Release Artifacts for 14G - 2504

Dell Customer Tools

Component	File Name	Supported Version
Dell Customer Toolkit	AzS_DellEMC_CustomerToolkit_2504.7.zip	2504.7
Dell OEM extension package for drivers and firmware updates	AzS-DellEMC-2.4.2504.1.zip	2.4.2504.1
Dell HLH Rebuild to Windows Server 2022	HLH_DataDrive_2504.5_Redeployment.zip	2504.5
Dell Patch and Update Automation Tool	Dell_EMC_Patch_and_Update_Automation_QE_2.0.2504.2.exe	2.0.2504.2

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2504.2	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Dell Deployment Automation	2.28.2504.50	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell Patch and Update Automation Tool	2.0.2504.2	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell RegisterJEA script	1.28.2504.8	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Customer Toolkit	2504.7	See Integrated System for Microsoft Azure Stack Hub 14G/Drivers & Downloads on the Dell Technologies Online Support website.
UpdateACL	1.1.2	N/A
UpdateWDAC	1.1.1	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Windows Server 2022 LCU	KB5058385	See the Windows support document KB5058385.
OS10 switch firmware (S5248, N3248)	10.6.0.3	OS10 switch firmware code is in the Dell Customer Toolkit.
OEM extension package	2.4.2504.1	Included in the Dell Customer Toolkit and contains the driver and firmware update payload.
Firmware Update Module in OEM Extension Package	2.2.2204.1	N/A

Updated OEM Package components

Server Type	Platform	OS Type	Component	Type	Category	Dell P/N	Previous SWB	Target SWB	Previous Version	Target Version
Scale Units (PowerEdge R840 AS Dense)	R840	N/A	BIOS	Firmware DUP	BIOS	N/A	5T6CY	NW297	2.22.1	2.24.0
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	N/A	BIOS	Firmware DUP	BIOS	N/A	F8GPH	T4VCN	2.22.2	2.24.0
Scale Units (PowerEdge R640 AS All Flash)	R640
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	N/A	iDRAC with Lifecycle controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	C2VDG	RVDDR	7.00.00.174	7.00.00.181
Scale Units (PowerEdge R640 AS All Flash)	R640
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R840 AS Dense)	R840	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	VJPKG	DL7A	DL7C
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	76DNG	14.32.20.04	14.32.21.02
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
N/A	14G	N/A	S5248F-ON	Switch Firmware	TOR	N/A	HD1V8	82WVT	10.6.0.1	10.6.0.3
N/A	14G	N/A	N3248TE-ON	Switch Firmware	BMC	N/A	HD1V8	82WVT	10.6.0.1	10.6.0.3

1.1.2 - Release Artifacts for 16G - 2504

Dell Customer Tools

Component	File Name	Supported Version
Dell Integrated System for Microsoft Azure Stack Hub OEM extension package with drivers and firmware updates	AzSHub_16G_Dell2504.2_OEMPackage.zip	2504.2
Dell Integrated System for Microsoft Azure Stack Hub HLH ISO	MS2406_Dell2504.6.iso	2504.6
Dell Integrated System for Microsoft Azure Stack Hub Lifecycle Manager	AzSHub_Dell2504.2_LifecycleManager.zip	2504.2

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2504.6	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Windows Server 2022 LCU	KB5058385	See the Windows support document KB5058385.
OS10 switch firmware (S5248)	10.6.0.3	OS10 switch firmware is included in the OEM Extension Package.
OEM extension package	2.4.2504.2	Contains the driver and firmware update payload.
OEM package	2504.2	Includes the OEM extension package.

Updated OEM Package components

Server Type	Platform	OS Type	Component	Type	Category	Dell P/N	Previous SWB	Target SWB	Previous Version	Target Version
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	BIOS	Firmware DUP	BIOS	N/A	K77XK	XK9CT	2.5.4	2.6.3
Scale Units (PowerEdge R760)	R760	N/A	BIOS	Firmware DUP	BIOS	N/A	K77XK	XK9CT	2.5.4	2.6.3
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	5MXXN	WN31M	7.20.10.50	7.20.30.50
Scale Units (PowerEdge R760)	R760	N/A	iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	5MXXN	WN31M	7.20.10.50	7.20.30.50
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	WS2022	Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	G6M58	3G71F	24.04.03	25.1
Scale Units (PowerEdge R760)	R760	WS2022	Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	G6M58	3G71F	24.04.03	25.1
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	WR74F	R39FM	3.32	3.33
Scale Units (PowerEdge R760)	R760	N/A	NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	WR74F	R39FM	3.32	3.33
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	WS2022	PERC H355 Adapter	Driver DUP	Storage - HBA	VCV6T	WC00M	6R1TD	7.726.01.0	7.730.02.00
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PERC H355 Adapter	Firmware DUP	Storage - HBA	VCV6T	RRR7N	PXRX0	52.26.0-5179	52.30.0-6115
N/A	16G	N/A	S5248F-ON	Switch Firmware	TOR	N/A	HD1V8	82WVT	10.6.0.1	10.6.0.3

1.2 - Release Artifacts for 2502

1.2.1 - Release Artifacts for 14G - 2502

Dell Customer Tools

Component	File Name	Supported Version
Dell Customer Toolkit	AzS_DellEMC_CustomerToolkit_2502.5.zip	2502.5
Dell OEM extension package for drivers and firmware updates	AzS-DellEMC-2.4.2502.1.zip	2.4.2502.1
Dell HLH Rebuild to Windows Server 2022	HLH_DataDrive_2502.9_Redeployment.zip	2502.9
Dell Patch and Update Automation Tool	Dell_EMC_Patch_and_Update_Automation_QE_2.0.2502.16.exe	2.0.2502.16

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2502.12	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Dell Deployment Automation	2.28.2502.13	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell Patch and Update Automation Tool	2.0.2502.16	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell RegisterJEA script	1.28.2502.11	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Customer Toolkit	2502.5	See Integrated System for Microsoft Azure Stack Hub 14G/Drivers & Downloads on the Dell Technologies Online Support website.
UpdateACL	1.1.2	N/A
UpdateWDAC	1.1.1	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Windows Server 2022 LCU	KB5051979	See the Windows support document KB5051979.
OS10 switch firmware (S5248, N3248)	10.6.0.1	OS10 switch firmware code is in the Dell Customer Toolkit.
OEM extension package	2.4.2502.1	Included in the Dell Customer Toolkit and contains the driver and firmware update payload.
Firmware Update Module in OEM Extension Package	2.2.2204.1	N/A

Updated OEM Package components

Server Type	Platform	OS Type	Component	Type	Category	Dell P/N	Previous SWB	Target SWB	Previous Version	Target Version
Scale Units (PowerEdge R740xd)	R740xd	N/A	HGST HUH721212AL5200	Firmware DUP	Storage - 12TB SAS HDD	9HXK6	8VV2X	04PM5	NS10	NS11
Scale Units (PowerEdge R740xd)	R740xd	N/A	HGST HUS726T4TALS200	Firmware DUP	Storage - 4TB SAS HDD	NT1X2	8W21G	J5K8G	PU07	PU09
Scale Units (PowerEdge R740xd)	R740xd	N/A	HGST HUS728T8TAL5200	Firmware DUP	Storage - 8TB SAS HDD	44YFV	27MDM	8GM6M	RS07	RS09
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	N/A	iDRAC with Lifecycle controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	XTFXJ	C2VDG	7.00.00.173	7.00.00.174
Scale Units (PowerEdge R640 AS All Flash)	R640
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
N/A	14G	N/A	S5248F-ON	Switch Firmware	TOR	N/A	DNVRC	HD1V8	10.5.6.5	10.6.0.1
N/A	14G	N/A	N3248TE-ON	Switch Firmware	BMC	N/A	DNVRC	HD1V8	10.5.6.5	10.6.0.1

1.2.2 - Release Artifacts for 16G - 2502

Dell Customer Tools

Component	File Name	Supported Version
Dell Integrated Systems for Microsoft Azure Stack Hub OEM extension package with drivers and firmware updates	AzSHub_16G_Dell2502.3_OEMPackage.zip	2502.3
Dell Integrated Systems for Microsoft Azure Stack Hub HLH ISO	MS2406_Dell2502.5.iso	2502.5
Dell Integrated Systems for Microsoft Azure Stack Hub Lifecycle Manager	AzSHub_Dell2502.32_LifecycleManager.zip	2502.32

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2502.5	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Windows Server 2022 LCU	KB5051979	See the Windows support document KB5051979.
OS10 switch firmware (S5248)	10.6.0.1	OS10 switch firmware is included in the OEM Extension Package.
OEM extension package	2.4.2502.3	Contains the driver and firmware update payload.
OEM package	2502.3	Includes the OEM extension package.

Updated OEM Package components

Server Type	Platform	OS Type	Component	Type	Category	Dell P/N	Previous SWB	Target SWB	Previous Version	Target Version
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	BIOS	Firmware DUP	BIOS	N/A	PJYMD	K77XK	2.4.4	2.5.4
Scale Units (PowerEdge R760)	R760	N/A	BIOS	Firmware DUP	BIOS	N/A	PJYMD	K77XK	2.4.4	2.5.4
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	3P9J3	33TD2	2.1.13.2025	2.1.13.2033
Scale Units (PowerEdge R760)	R760	N/A	BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	3P9J3	33TD2	2.1.13.2025	2.1.13.2033
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	92MM7	5MXXN	7.10.90.00	7.20.10.50
Scale Units (PowerEdge R760)	R760	N/A	iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	92MM7	5MXXN	7.10.90.00	7.20.10.50
N/A	16G	N/A	S5248F-ON	Switch Firmware	TOR	N/A	DNVRC	HD1V8	10.5.6.5	10.6.0.1

1.3 - Release Artifacts for 2411

1.3.1 - Release Artifacts for 14G - 2411

Dell Customer Tools

Component	File Name	Supported Version
Dell Customer Toolkit	AzS_DellEMC_CustomerToolkit_2411.4.zip	2411.4
Dell OEM extension package for drivers and firmware updates	AzS-DellEMC-2.4.2411.1.zip	2.4.2411.1
Dell HLH Rebuild to Windows Server 2022	HLH_DataDrive_2411.12_Redeployment.zip	2411.12
Dell Patch and Update Automation Tool	Dell_EMC_Patch_and_Update_Automation_QE_2.0.2411.4.exe	2.0.2411.4
Dell Node Expansion scripts	DELLEMCNodeExpansion_1.27.2411.7.zip	1.27.2411.7

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2408.0.19	Azure Stack Hub 2408 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2411.5	N/A
Microsoft Partner Toolkit (PTK)	1.2408.2852.106	Includes the Deployment Worksheet.
Dell Deployment Automation	2.27.2411.8	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell Patch and Update Automation Tool	2.0.2411.4	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Node Expansion	1.27.2411.7	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell RegisterJEA script	1.27.2411.6	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Customer Toolkit	2411.4	See Integrated System for Microsoft Azure Stack Hub 14G/Drivers & Downloads on the Dell Technologies Online Support website.
UpdateACL	1.1.2	N/A
UpdateWDAC	1.1.1	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Windows Server 2022 LCU	KB5047767	See the Windows support document KB5047767.
OS9 switch firmware (S3048, S4048, S5048)	9.14.2.23	OS9 switch firmware code is in the Dell Customer Toolkit.
OS10 switch firmware (S5248, N3248)	10.5.6.5	OS10 switch firmware code is in the Dell Customer Toolkit.
OEM extension package	2.4.2411.1	Included in the Dell Customer Toolkit and contains the driver and firmware update payload.
Firmware Update Module in OEM Extension Package	2.2.2204.1	N/A

Updated OEM Package components

Server Type	Platform	OS Type	Component	Type	Category	Dell P/N	Previous SWB	Target SWB	Previous Version	Target Version
Scale Units (PowerEdge R840 AS Dense)	R840	N/A	BIOS	Firmware DUP	BIOS	N/A	Y2C9P	5T6CY	2.21.0	2.22.1
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	N/A	BIOS	Firmware DUP	BIOS	N/A	72VRD	F8GPH	2.21.2	2.22.2
Scale Units (PowerEdge R640 AS All Flash)	R640
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	N/A	iDRAC with Lifecycle controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	3NNH8	XTFXJ	7.00.00.172	7.00.00.173
Scale Units (PowerEdge R640 AS All Flash)	R640
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	WS2022	INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	CC15F	4DDMJ	10.1.19485.8386	10.1.19913.8607
Scale Units (PowerEdge R640 AS All Flash)	R640
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R840 AS Dense)	R840	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Scale Units (PowerEdge R640 AS All Flash)	R640	N/A	INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	14DT9	9RF8X	DL74	DL7A
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
Hardware Lifecycle Host/HLH (PowerEdge R640)	R640	WS2022	INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Driver DUP	Network	N/A	8FFGM	6JHVK	22.5.0	23.0.0
Scale Units (PowerEdge R640 AS All Flash)	R640	WS2022	Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	52PMN	G6M58	23.07.01	24.04.03
Scale Units (PowerEdge R640 Tactical)	R640
Scale Units (PowerEdge R740xd)	R740xd
Scale Units (PowerEdge R840 AS Dense)	R840
N/A	14G	N/A	S5248F-ON	Switch Firmware	TOR	N/A	RJC13	DNVRC	10.5.6.3	10.5.6.5
N/A	14G	N/A	N3248TE-ON	Switch Firmware	BMC	N/A	RJC13	DNVRC	10.5.6.3	10.5.6.5

1.3.2 - Release Artifacts for 16G - 2411

Dell Customer Tools

Component	File Name	Supported Version
Dell Integrated Systems for Microsoft Azure Stack Hub OEM extension package with drivers and firmware updates	AzSHub_16G_Dell2411.6_OEMPackage.zip	2411.6
Dell Integrated Systems for Microsoft Azure Stack Hub HLH ISO	MS2406_Dell2411.10.iso	2411.10

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2408.0.19	Azure Stack Hub 2408 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2411.10	N/A
Microsoft Partner Toolkit (PTK)	1.2408.2852.106	Includes the Deployment Worksheet.
Windows Server 2022 LCU	KB5044281	See the Windows support document KB5044281.
OS10 switch firmware (S5248)	10.5.6.5	OS10 switch firmware is included in the OEM Extension Package.
OEM extension package	2.4.2411.6	Contains the driver and firmware update payload.
OEM package	2411.6	Includes the OEM extension package.

Updated OEM Package components

Server Type	Platform	OS Type	Component	Type	Category	Dell P/N	Previous SWB	Target SWB	Previous Version	Target Version
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	V02TY	N71F4	1.3.0	1.6.0
Scale Units (PowerEdge R760)	R760	N/A	7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	V02TY	N71F4	1.3.0	1.6.0
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	MC09G	HNW5G	1.0.0	1.1.0
Scale Units (PowerEdge R760)	R760	N/A	7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	MC09G	HNW5G	1.0.0	1.1.0
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	BIOS	Firmware DUP	BIOS	N/A	5534J	PJYMD	2.2.7	2.4.4
Scale Units (PowerEdge R760)	R760	N/A	BIOS	Firmware DUP	BIOS	N/A	5534J	PJYMD	2.2.7	2.4.4
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	WS2022	Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	X6F17	P7PJM	10.1.19485.8386	10.1.19928.8615
Scale Units (PowerEdge R760)	R760	WS2022	Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	X6F17	P7PJM	10.1.19485.8386	10.1.19928.8615
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	CPLD	Firmware DUP	CPLD	N/A	C1N0G	503F0	1.2.1	1.2.6
Scale Units (PowerEdge R760)	R760	N/A	CPLD	Firmware DUP	CPLD	N/A	C1N0G	503F0	1.2.1	1.2.6
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	CX8MF	92MM7	7.10.50.00	7.10.90.00
Scale Units (PowerEdge R760)	R760	N/A	iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	CX8MF	92MM7	7.10.50.00	7.10.90.00
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	J9V68	1H4PM	26.38.10.02	26.41.10.00
Scale Units (PowerEdge R760)	R760	N/A	Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	J9V68	1H4PM	26.38.10.02	26.41.10.00
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	WS2022	Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	52PMN	G6M58	23.07.01	24.04.03
Scale Units (PowerEdge R760)	R760	WS2022	Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	52PMN	G6M58	23.07.01	24.04.03
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	V5501	WR74F	3.31	3.32
Scale Units (PowerEdge R760)	R760	N/A	NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	V5501	WR74F	3.31	3.32
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	TXYX4	R2TTT	1.1.0	1.3.0
Scale Units (PowerEdge R760)	R760	N/A	PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	TXYX4	R2TTT	1.1.0	1.3.0
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	P4MXR	CDKNW	1.0.0	1.1.0
Scale Units (PowerEdge R760)	R760	N/A	PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	P4MXR	CDKNW	1.0.0	1.1.0
Scale Units (PowerEdge R760)	R760	N/A	PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	DYC3X	3JJHC	1.1.0	1.2.2
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	PHR5C	5V3P7	2.3.0	2.5.0
Scale Units (PowerEdge R760)	R760	N/A	PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	PHR5C	5V3P7	2.3.0	2.5.0
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	PHR5C	5V3P7	2.3.0	2.5.0
Scale Units (PowerEdge R760)	R760	N/A	PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	PHR5C	5V3P7	2.3.0	2.5.0
Scale Units (PowerEdge R760)	R760	N/A	PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	JN1W7	F6TGN	1.1.1	1.1.2
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	JN1W7	F6TGN	1.1.1	1.1.2
Scale Units (PowerEdge R760)	R760	N/A	PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	JN1W7	F6TGN	1.1.1	1.1.2
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	T95HP	T21WT	C10C	C10E
Scale Units (PowerEdge R760)	R760	N/A	PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	T95HP	T21WT	C10C	C10E
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, IS	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	4K7P4	3X8R4	1.0.0	1.2.0
Scale Units (PowerEdge R760)	R760	N/A	PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, IS	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	4K7P4	3X8R4	1.0.0	1.2.0
Hardware Lifecycle Host/HLH (PowerEdge R760)	R760	N/A	PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	4K7P4	3X8R4	1.0.0	1.2.0
Scale Units (PowerEdge R760)	R760	N/A	PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	4K7P4	3X8R4	1.0.0	1.2.0
N/A	16G	N/A	S5248F-ON	Switch Firmware	TOR	N/A	RJC13	DNVRC	10.5.6.3	10.5.6.5

2 - Release Notes

2.1 - Release Notes for 2504

2.1.1 - Release Notes for 14G - 2504

Dell Integrated System for Microsoft Azure Stack Hub Release Notes

Current Release Version: Dell 2504 and Microsoft 2501

Release Type: Major (MA)

NOTE

Dell Azure Stack Hub OEM updates must be installed in sequential order, it is not supported to skip or miss-out an OEM update version. These release notes contain supplemental information for the Dell 2504 release and the Microsoft 2501 release.

New features, changed features, and fixes

New features

There are improvements and updates to drivers and firmware. See Release Artifacts for 14G - 2504.

Changed features

There are no changed features for this release.

Fixes

There are no fixes for this release.

Known issues and limitations

This release notes document describes known issues and limitations for the Dell Integrated System for Microsoft Azure Stack Hub solution based on the Dell 2504 release and Microsoft 2501 release.

Item	Description
OEM update	Dell Technologies recommends updating to the n-1 version before applying the latest OEM package.
Microsoft Azure Stack Hub code	For information about known issues and limitations in the Microsoft Azure Stack Hub code, see the Azure Stack Hub 2501 update on the Microsoft website

Notes and warnings

CAUTION

Before you use the Microsoft Patch and Update process to update Azure Stack Hub, close any active session to the ERCS virtual machines. If an active session is open, the update may fail, and must be resumed.

Microsoft fixed issues

For information about fixed issues in this release, see the Azure Stack Hub 2501 update on the Microsoft website.

Hardware and firmware support

For information about supported hardware, firmware, and software, see the Dell Integrated System for Microsoft Azure Stack Hub Support Matrix.

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2504.2	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Dell Deployment Automation	2.28.2504.50	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell Patch and Update Automation Tool	2.0.2504.2	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell RegisterJEA script	1.28.2504.8	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Customer Toolkit	2504.7	See Integrated System for Microsoft Azure Stack Hub 14G/Drivers & Downloads on the Dell Technologies Online Support website.
UpdateACL	1.1.2	N/A
UpdateWDAC	1.1.1	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Windows Server 2022 LCU	KB5058385	See the Windows support document KB5058385.
OS10 switch firmware (S5248, N3248)	10.6.0.3	OS10 switch firmware code is in the Dell Customer Toolkit.
OEM extension package	2.4.2504.1	Included in the Dell Customer Toolkit and contains the driver and firmware update payload.
Firmware Update Module in OEM Extension Package	2.2.2204.1	N/A

Additional resources

Dell Technologies resources

Additional Dell Technologies resources are available on the Dell Technologies Online Support website:

14G documentation

Microsoft resources

The following additional resources are available on the Microsoft website:

2.1.2 - Release Notes for 16G - 2504

Dell Integrated System for Microsoft Azure Stack Hub Release Notes

Current Release Version: Dell 2504 and Microsoft 2501

Release Type: Major (MA)

NOTE

New features, changed features, and fixes

New features

There are improvements and updates to drivers and firmware. See Release Artifacts for 16G - 2504.

Changed features

There are no changed features for this release.

Fixes

There are no fixes for this release.

Known issues and limitations

This release notes document describes known issues and limitations for the Dell Integrated System for Microsoft Azure Stack Hub solution based on the Dell 2504 release and Microsoft 2501 release.

Item	Description
OEM update	Dell Technologies recommends updating to the n-1 version before applying the latest OEM package.
Microsoft Azure Stack Hub code	For information about known issues and limitations in the Microsoft Azure Stack Hub code, see the Azure Stack Hub 2501 update on the Microsoft website

Notes and warnings

CAUTION

Microsoft fixed issues

For information about fixed issues in this release, see the Azure Stack Hub 2501 update on the Microsoft website.

Hardware and firmware support

For information about supported hardware, firmware, and software, see the Dell Integrated System for Microsoft Azure Stack Hub Support Matrix.

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2504.6	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Windows Server 2022 LCU	KB5058385	See the Windows support document KB5058385.
OS10 switch firmware (S5248)	10.6.0.3	OS10 switch firmware is included in the OEM Extension Package.
OEM extension package	2.4.2504.2	Contains the driver and firmware update payload.
OEM package	2504.2	Includes the OEM extension package.

Additional resources

Dell Technologies resources

Additional Dell Technologies resources are available on the Dell Technologies Online Support website:

16G documentation

Microsoft resources

The following additional resources are available on the Microsoft website:

2.2 - Release Notes for 2502

2.2.1 - Release Notes for 14G - 2502

Dell Integrated System for Microsoft Azure Stack Hub Release Notes

Current Release Version: Dell 2502 and Microsoft 2501

Release Type: Major (MA)

NOTE

New features, changed features, and fixes

New features

There are improvements and updates to drivers and firmware. See Release Artifacts for 14G - 2502.

Changed features

There are no changed features for this release.

Fixes

There are no fixes for this release.

Known issues and limitations

This release notes document describes known issues and limitations for the Dell Integrated System for Microsoft Azure Stack Hub solution based on the Dell 2502 release and Microsoft 2501 release.

Item	Description
OEM update	Dell Technologies recommends updating to the n-1 version before applying the latest OEM package.
Microsoft Azure Stack Hub code	For information about known issues and limitations in the Microsoft Azure Stack Hub code, see the Azure Stack Hub 2501 update on the Microsoft website

Notes and warnings

CAUTION

Microsoft fixed issues

For information about fixed issues in this release, see the Azure Stack Hub 2501 update on the Microsoft website.

Hardware and firmware support

For information about supported hardware, firmware, and software, see the Dell Integrated System for Microsoft Azure Stack Hub Support Matrix.

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2502.12	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Dell Deployment Automation	2.28.2502.13	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell Patch and Update Automation Tool	2.0.2502.16	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell RegisterJEA script	1.28.2502.11	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Customer Toolkit	2502.5	See Integrated System for Microsoft Azure Stack Hub 14G/Drivers & Downloads on the Dell Technologies Online Support website.
UpdateACL	1.1.2	N/A
UpdateWDAC	1.1.1	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Windows Server 2022 LCU	KB5051979	See the Windows support document KB5051979.
OS10 switch firmware (S5248, N3248)	10.6.0.1	OS10 switch firmware code is in the Dell Customer Toolkit.
OEM extension package	2.4.2502.1	Included in the Dell Customer Toolkit and contains the driver and firmware update payload.
Firmware Update Module in OEM Extension Package	2.2.2204.1	N/A

Additional resources

Dell Technologies resources

Additional Dell Technologies resources are available on the Dell Technologies Online Support website:

14G documentation

Microsoft resources

The following additional resources are available on the Microsoft website:

2.2.2 - Release Notes for 16G - 2502

Dell Integrated System for Microsoft Azure Stack Hub Release Notes

Current Release Version: Dell 2502 and Microsoft 2501

Release Type: Major (MA)

NOTE

New features, changed features, and fixes

New features

Initial release of the Dell Integrated System for Microsoft Azure Stack Hub Lifecycle Manager which provides an automated way of upgrading Hardware Lifecycle Host (HLH) firmware, software and driver components. See Patch and Update for 16G.
There are improvements and updates to drivers and firmware. See Release Artifacts for 16G - 2502.

Changed features

There are no changed features for this release.

Fixes

There are no fixes for this release.

Known issues and limitations

This release notes document describes known issues and limitations for the Dell Integrated System for Microsoft Azure Stack Hub solution based on the Dell 2502 release and Microsoft 2501 release.

Item	Description
OEM update	Dell Technologies recommends updating to the n-1 version before applying the latest OEM package.
Microsoft Azure Stack Hub code	For information about known issues and limitations in the Microsoft Azure Stack Hub code, see the Azure Stack Hub 2501 update on the Microsoft website

Notes and warnings

CAUTION

Microsoft fixed issues

For information about fixed issues in this release, see the Azure Stack Hub 2501 update on the Microsoft website.

Hardware and firmware support

For information about supported hardware, firmware, and software, see the Dell Integrated System for Microsoft Azure Stack Hub Support Matrix.

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2501.0.21	Azure Stack Hub 2501 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2502.5	N/A
Microsoft Partner Toolkit (PTK)	1.2501.2966.112	Includes the Deployment Worksheet.
Windows Server 2022 LCU	KB5051979	See the Windows support document KB5051979.
OS10 switch firmware (S5248)	10.6.0.1	OS10 switch firmware is included in the OEM Extension Package.
OEM extension package	2.4.2502.3	Contains the driver and firmware update payload.
OEM package	2502.3	Includes the OEM extension package.

Additional resources

Dell Technologies resources

Additional Dell Technologies resources are available on the Dell Technologies Online Support website:

16G documentation

Microsoft resources

The following additional resources are available on the Microsoft website:

2.3 - Release Notes for 2411

2.3.1 - Release Notes for 14G - 2411

Dell Integrated System for Microsoft Azure Stack Hub Release Notes

Current Release Version: Dell 2411 and Microsoft 2408

Release Type: Major (MA)

NOTE

New features, changed features, and fixes

New features

There are improvements and updates to drivers and firmware. See Release Artifacts for 14G - 2411.

Changed features

There are no changed features for this release.

Fixes

There are no fixes for this release.

Known issues and limitations

This release notes document describes known issues and limitations for the Dell Integrated System for Microsoft Azure Stack Hub solution based on the Dell 2411 release and Microsoft 2408 release.

Item	Description
OEM update	Dell Technologies recommends updating to the n-1 version before applying the latest OEM package.
Microsoft Azure Stack Hub code	For information about known issues and limitations in the Microsoft Azure Stack Hub code, see the Azure Stack Hub 2408 update on the Microsoft website

Notes and warnings

CAUTION

Microsoft fixed issues

For information about fixed issues in this release, see the Azure Stack Hub 2408 update on the Microsoft website.

Hardware and firmware support

For information about supported hardware, firmware, and software, see the Dell Integrated System for Microsoft Azure Stack Hub Support Matrix.

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2408.0.19	Azure Stack Hub 2408 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2411.5	N/A
Microsoft Partner Toolkit (PTK)	1.2408.2852.106	Includes the Deployment Worksheet.
Dell Deployment Automation	2.27.2411.8	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell Patch and Update Automation Tool	2.0.2411.4	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Node Expansion	1.27.2411.7	See the Dell Integrated System for Microsoft Azure Stack Hub Deployment Guide.
Dell RegisterJEA script	1.27.2411.6	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Dell Customer Toolkit	2411.4	See Integrated System for Microsoft Azure Stack Hub 14G/Drivers & Downloads on the Dell Technologies Online Support website.
UpdateACL	1.1.2	N/A
UpdateWDAC	1.1.1	See the Dell Integrated System for Microsoft Azure Stack Hub Patch and Update Installation Guide.
Windows Server 2022 LCU	KB5047767	See the Windows support document KB5047767.
OS9 switch firmware (S3048, S4048, S5048)	9.14.2.23	OS9 switch firmware code is in the Dell Customer Toolkit.
OS10 switch firmware (S5248, N3248)	10.5.6.5	OS10 switch firmware code is in the Dell Customer Toolkit.
OEM extension package	2.4.2411.1	Included in the Dell Customer Toolkit and contains the driver and firmware update payload.
Firmware Update Module in OEM Extension Package	2.2.2204.1	N/A

Additional resources

Dell Technologies resources

Additional Dell Technologies resources are available on the Dell Technologies Online Support website:

14G documentation

Microsoft resources

The following additional resources are available on the Microsoft website:

2.3.2 - Release Notes for 16G - 2411

Dell Integrated System for Microsoft Azure Stack Hub Release Notes

Current Release Version: Dell 2411 and Microsoft 2408

Release Type: Major (MA)

NOTE

New features, changed features, and fixes

New features

There are improvements and updates to drivers and firmware. See Release Artifacts for 16G - 2411.

Changed features

There are no changed features for this release.

Fixes

There are no fixes for this release.

Known issues and limitations

This release notes document describes known issues and limitations for the Dell Integrated System for Microsoft Azure Stack Hub solution based on the Dell 2411 release and Microsoft 2408 release.

Item	Description
OEM update	Dell Technologies recommends updating to the n-1 version before applying the latest OEM package.
Microsoft Azure Stack Hub code	For information about known issues and limitations in the Microsoft Azure Stack Hub code, see the Azure Stack Hub 2408 update on the Microsoft website

Notes and warnings

CAUTION

Microsoft fixed issues

For information about fixed issues in this release, see the Azure Stack Hub 2408 update on the Microsoft website.

Hardware and firmware support

For information about supported hardware, firmware, and software, see the Dell Integrated System for Microsoft Azure Stack Hub Support Matrix.

Software Versions

Component	Version	Notes
Microsoft Azure Stack Hub Baseline (for bare-metal deployment)	1.2408.0.19	Azure Stack Hub 2408 update. The hotfix will be available in the Admin portal.
Hardware Lifecycle Host	1.2406.0.8	N/A
Hardware Lifecycle Host ISO	2411.10	N/A
Microsoft Partner Toolkit (PTK)	1.2408.2852.106	Includes the Deployment Worksheet.
Windows Server 2022 LCU	KB5044281	See the Windows support document KB5044281.
OS10 switch firmware (S5248)	10.5.6.5	OS10 switch firmware is included in the OEM Extension Package.
OEM extension package	2.4.2411.6	Contains the driver and firmware update payload.
OEM package	2411.6	Includes the OEM extension package.

Additional resources

Dell Technologies resources

Additional Dell Technologies resources are available on the Dell Technologies Online Support website:

16G documentation

Microsoft resources

The following additional resources are available on the Microsoft website:

3 - Support Matrix

3.1 - Support Matrix for 2504

3.1.1 - Support Matrix for 14G - 2504

Dell Integrated System for Microsoft Azure Stack Hub - Valid from Dell 2504 release and Microsoft 2501 release

Abstract

This support matrix provides information about supported software and hardware configurations for Dell Integrated System for Microsoft Azure Stack Hub.

Introduction

The Dell Integrated System for Microsoft Azure Stack Hub Support Matrix describes supported drivers, firmware, applications, and hardware for Dell Integrated System for Microsoft Azure Stack Hub.

NOTE

All references to release dates refer to Dell Technologies releases, unless otherwise indicated.

14G Scale Units - PowerEdge R740xd

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	T4VCN	2.24.0
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	G65GH	1.1.4
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	RVDDR	7.00.00.181
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	76DNG	14.32.21.02
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM6XVUG1T60	Firmware DUP	Storage - 1.6TB SAS SSD	GD3N0	NGPR2	BA48
KIOXIA KPM7XVUG1T60	Firmware DUP	Storage - 1.6TB SAS SSD	4TRHM	N/A	N/A
SAMSUNG MZILG1T6HCJRAD9	Firmware DUP	Storage - 1.6TB SAS SSD	TK47C	N/A	N/A
TOSHIBA PX05SMB160Y	Firmware DUP	Storage - 1.6TB SAS SSD	GVTYD	N/A	N/A
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	4CN85	NGPR2	BA48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	N/A	N/A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	N/A	N/A
HGST HUH721010AL4200	Firmware DUP	Storage - 10TB SAS HDD	YG2KH	MGW91	LS21
HGST HUH721010AL5200	Firmware DUP	Storage - 10TB SAS HDD	07FPR	MGW91	LS21
SEAGATE ST10000NM0256	Firmware DUP	Storage - 10TB SAS HDD	YF87J	CD2WP	TT56
SEAGATE ST10000NM0598	Firmware DUP	Storage - 10TB SAS HDD	HV5CH	N/A	N/A
TOSHIBA MG06SCA10TEY	Firmware DUP	Storage - 10TB SAS HDD	14YYC	4G5GY	EH0D
TOSHIBA MG07SCA12TEY	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
HGST HUH721212AL5200	Firmware DUP	Storage - 12TB SAS HDD	9HXK6	04PM5	NS11
SEAGATE ST12000NM006J	Firmware DUP	Storage - 12TB SAS HDD	M1C0T	N/A	N/A
SEAGATE ST12000NM007H	Firmware DUP	Storage - 12TB SAS HDD	FN7VR	N/A	N/A
SEAGATE ST12000NM009G	Firmware DUP	Storage - 12TB SAS HDD	7KT9W	N/A	N/A
SEAGATE ST12000NM0158	Firmware DUP	Storage - 12TB SAS HDD	YMN53	N/A	N/A
TOSHIBA MG09SCA12TEY	Firmware DUP	Storage - 12TB SAS HDD	0N96X	N/A	N/A
INTEL D3-S45100 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	VJPKG	DL7C
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	VJPKG	DL7C
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
HGST HUS726040ALS210	Firmware DUP	Storage - 4TB SAS HDD	X4FKY	N/A	N/A
HGST HUS726T4TALS200	Firmware DUP	Storage - 4TB SAS HDD	NT1X2	J5K8G	PU09
TOSHIBA MG04SCA40ENY	Firmware DUP	Storage - 4TB SAS HDD	1MVTT	RG9MK	EG03
TOSHIBA MG10SDA400NY	Firmware DUP	Storage - 4TB SAS HDD	9VN79	N/A	N/A
SEAGATE ST4000NM017A	Firmware DUP	Storage - 4TB SAS HDD	KRM6X	N/A	N/A
SEAGATE ST4000NM019B	Firmware DUP	Storage - 4TB SAS HDD	10N7R	N/A	N/A
SEAGATE ST4000NM0295	Firmware DUP	Storage - 4TB SAS HDD	W5M2R	XKD4M	DT34
SEAGATE ST6000NM035A	Firmware DUP	Storage - 6TB SAS HDD	CVTK9	N/A	N/A
TOSHIBA MG05ACA600E	Firmware DUP	Storage - 6TB SAS HDD	81Y15	N/A	N/A
TOSHIBA MG06SCA600EY	Firmware DUP	Storage - 6TB SAS HDD	XXPPV	4G5GY	EH0D
KIOXIA KPM6XMUG800G	Firmware DUP	Storage - 800GB SAS SSD	H6GCD	NGPR2	BA48
KIOXIA KPM7XVUG800G	Firmware DUP	Storage - 800GB SAS SSD	X96H8	N/A	N/A
WESTERN DIGITAL WUSTM3280BSS200	Firmware DUP	Storage - 800GB SAS SSD	F99F6	N/A	N/A
TOSHIBA PX05SMB080Y	Firmware DUP	Storage - 800GB SAS SSD	CN3JH	N/A	N/A
SEAGATE ST8000NM0185	Firmware DUP	Storage - 8TB SAS HDD	M40TH	6421F	PT55
TOSHIBA MG08SDA800EY	Firmware DUP	Storage - 8TB SAS HDD	NJWMG	N/A	N/A
TOSHIBA MG10SDA800EY	Firmware DUP	Storage - 8TB SAS HDD	VJDMM	N/A	N/A
HGST HUH721008AL4200	Firmware DUP	Storage - 8TB SAS HDD	CDDMJ	MGW91	LS21
HGST HUH721008AL5200	Firmware DUP	Storage - 8TB SAS HDD	KRDKK	MGW91	LS21
HGST HUS728T8TAL5200	Firmware DUP	Storage - 8TB SAS HDD	44YFV	8GM6M	RS09
SEAGATE ST8000NM014A	Firmware DUP	Storage - 8TB SAS HDD	0N660	N/A	N/A
SEAGATE ST8000NM015A	Firmware DUP	Storage - 8TB SAS HDD	K6646	N/A	N/A
SEAGATE ST8000NM0195	Firmware DUP	Storage - 8TB SAS HDD	DKGYV	N/A	N/A
SEAGATE ST8000NM0195	Firmware DUP	Storage - 8TB SAS HDD	KNYW0	N/A	N/A
SEAGATE ST8000NM024B	Firmware DUP	Storage - 8TB SAS HDD	C5HD0	NM6GP	LS0C
TOSHIBA MG06SCA800EY	Firmware DUP	Storage - 8TB SAS HDD	FV725	4G5GY	EH0D
KIOXIA KPM6WVUG960G	Firmware DUP	Storage - 960GB SAS SSD	J92FY	6DH0W	BD48
KIOXIA KPM6WVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WMWKG	6DH0W	BD48
KIOXIA KPM7WRUG960G	Firmware DUP	Storage - 960GB SAS SSD	T1RHN	N/A	N/A
KIOXIA KPM7XRUG960G	Firmware DUP	Storage - 960GB SAS SSD	KRVY1	N/A	N/A
KIOXIA KRM7VVUG960G	Firmware DUP	Storage - 960GB SAS SSD	05MT7	N/A	N/A
SAMSUNG MZILG960HCHQAD9	Firmware DUP	Storage - 960GB SAS SSD	RX1JG	N/A	N/A
KIOXIA KPM5XVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WFGTH	CPP97	B02A
KIOXIA KPM6WRUG960G	Firmware DUP	Storage - 960GB SAS SSD	R9RTY	6DH0W	BD48
SEAGATE KRM6VVUG960G	Firmware DUP	Storage - 960GB SAS SSD	42XXC	N/A	N/A
SEAGATE XS960LE70134	Firmware DUP	Storage - 960GB SAS SSD	2RDWT	N/A	N/A
SEAGATE XS960LE70154	Firmware DUP	Storage - 960GB SAS SSD	38R6V	N/A	N/A
TOSHIBA KPM5XVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WFGTH	CPP97	B02A
TOSHIBA PX05SVB096Y	Firmware DUP	Storage - 960GB SAS SSD	503M7	N/A	N/A
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	VJPKG	DL7C
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
KIOXIA KRM7VRUG960G	Firmware DUP	Storage - 960GB vSAS SSD	6RNXC	N/A	N/A
SEAGATE XS960LE70095	Firmware DUP	Storage - 960GB vSAS SSD	2M1NG	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R640 All Flash

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	T4VCN	2.24.0
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	RVDDR	7.00.00.181
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	76DNG	14.32.21.02
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	N/A	N/A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	N/A	N/A
KIOXIA KPM6XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	NKM7P	NGPR2	BA48
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	N/A	N/A
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	N/A	N/A
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	N/A	N/A
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	N/A	N/A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	N/A	N/A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	N/A	N/A
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	N/A	N/A
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	N/A	N/A
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	N/A	N/A
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	N/A	N/A
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	N/A	N/A
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	N/A	N/A
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	N/A	N/A
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	N/A	N/A
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	VJPKG	DL7C
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	VJPKG	DL7C
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	VJPKG	DL7C
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R640 Tactical

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	T4VCN	2.24.0
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	RVDDR	7.00.00.181
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	76DNG	14.32.21.02
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	N/A	N/A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	N/A	N/A
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	N/A	N/A
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	N/A	N/A
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	N/A	N/A
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	N/A	N/A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	N/A	N/A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	N/A	N/A
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	N/A	N/A
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	N/A	N/A
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	N/A	N/A
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	N/A	N/A
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	N/A	N/A
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	N/A	N/A
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	N/A	N/A
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	N/A	N/A
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	VJPKG	DL7C
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	VJPKG	DL7C
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	VJPKG	DL7C
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R840 Dense

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	NW297	2.24.0
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	67GJY	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	RVDDR	7.00.00.181
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	76DNG	14.32.21.02
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM6XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	NKM7P	NGPR2	BA48
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	N/A	N/A
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	N/A	N/A
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	N/A	N/A
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	N/A	N/A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	N/A	N/A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	N/A	N/A
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	N/A	N/A
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	N/A	N/A
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	N/A	N/A
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	N/A	N/A
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	N/A	N/A
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	N/A	N/A
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	N/A	N/A
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	N/A	N/A
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	VJPKG	DL7C
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	VJPKG	DL7C
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	VJPKG	DL7C
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	VJPKG	DL7C
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	NKNVC	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Hardware Lifecycle Host - PowerEdge R640

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Driver DUP	Network	N/A	6JHVK	23.0.0
PERC H330	Driver DUP	SAS HBA - Internal	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	T4VCN	2.24.0
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	RVDDR	7.00.00.181
INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Firmware DUP	Network	N/A	H8M48	20.5.16
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
PERC H330	Firmware DUP	SAS HBA - Internal	N/A	NYKX7	25.5.9.0001
HGST HUSTR7619ASS200	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	J68N1	N/A	N/A
KIOXIA KPM5XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	TDNP7	CPP97	B02A
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	2WVYG	CPP97	B02A
KIOXIA KPM6WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	7F2D1	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	MFCD7	N/A	N/A
SAMSUNG MZILS1T9HEJH0D3	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	086DD	N/A	N/A
SAMSUNG MZILT1T9HAJQ0D3	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	F0VFY	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	91DPV	N/A	N/A
TOSHIBA KPM5XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	TDNP7	CPP97	B02A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	2WVYG	CPP97	B02A
TOSHIBA PX05SRB192Y	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	0FYFW	N/A	N/A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	V0K7V	N/A	N/A
WESTERN DIGITAL WUSTVA119BSS200	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	02X38	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD (Boot)	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD (Boot)	K805Y	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

Switches

Platform	Type	Dell Part Number (P/N)	Supported Switch OS Version
Dell EMC PowerSwitch N3248TE-ON	MGMT	05WPCH	10.6.0.3
Dell EMC PowerSwitch S5248F-ON	ToR	N/A	10.6.0.3
Z9100-ON	Internal backend	N/A	10.6.0.3
Cisco 9348GC-FXP	MGMT	N/A	Minimum supported version:9.3(3)
Cisco 93180YC-FX	ToR	N/A	Minimum supported version:9.3(3)

Other Components

Vendor	Platform	Component	Model	Firmware
NVIDIA	PowerEdge 640	GPU	T4	90.04.96.00.01
NVIDIA	PowerEdge 840 Dense	GPU	V100s	88.00.98.00.01
NVIDIA	PowerEdge 840 Dense	GPU	Mi25	N/A

Dell small form-factor pluggable modules

SFP Module	S3048-ON Platform	N3248TE-ON Platform	S4048-ON Platform	S5048F-ON Platform	S5248F-ON Platform
10 GbE SR LC SFP+	X	X	X	X	X
10 GbE LR LC SFP+	X	X	X	X	X
25 GbE SR LC SFP28+				X	X
25 GbE LR LC SFP28+				X	X
40 GbE SR BiDi QSFP+			X	X	X
40 GbE SR MTP/MPO QSFP+			X	X	X
40 GbE LR MTP/MPO QSFP+			X	X	X
100 GbE SR MTP/MPO QSFP28+		X		X	X
100 GbE LR MTP/MPO QSFP28+		X		X	X
2x100BASE-2CR4 QSFP28-DD					X

Dell Customer Tools

Component	File Name	Supported Version
Dell Customer Toolkit	AzS_DellEMC_CustomerToolkit_2504.7.zip	2504.7
Dell OEM extension package for drivers and firmware updates	AzS-DellEMC-2.4.2504.1.zip	2.4.2504.1
Dell HLH Rebuild to Windows Server 2022	HLH_DataDrive_2504.5_Redeployment.zip	2504.5
Dell Patch and Update Automation Tool	Dell_EMC_Patch_and_Update_Automation_QE_2.0.2504.2.exe	2.0.2504.2

3.1.2 - Support Matrix for 16G - 2504

Dell Integrated System for Microsoft Azure Stack Hub - Valid from Dell 2504 release and Microsoft 2501 release

Abstract

This support matrix provides information about supported software and hardware configurations for Dell Integrated System for Microsoft Azure Stack Hub.

Introduction

The Dell Integrated System for Microsoft Azure Stack Hub Support Matrix describes supported drivers, firmware, applications, and hardware for Dell Integrated System for Microsoft Azure Stack Hub.

NOTE

All references to release dates refer to Dell Technologies releases, unless otherwise indicated.

16G Scale Units - AS-760

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
BOSS-N1	Driver DUP	BOSS-N1	2MFVD	N/A	Inbox
Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	R40PW	10.1.19928.8615
Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	3G71F	25.1
HBA355i	Driver DUP	Storage - HBA	K6MCJ	M2P63	2.61.48.00
BIOS	Firmware DUP	BIOS	N/A	XK9CT	2.6.3
BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	33TD2	2.1.13.2033
CPLD	Firmware DUP	CPLD	N/A	503F0	1.2.6
iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	WN31M	7.20.30.50
Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	1H4PM	26.41.10.00
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 1.92TB SAS SSD	VRTN9	NGPR2	BA48
MG07, HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	FRHHG	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	TY3M5	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	MXM95	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	97GR0	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	XFNX0	N/A	N/A
PM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	15TVC	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	N/A	N/A
Kioxia KPM6XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	2XVX2	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 3.84TB SAS SSD	9N32F	N/A	N/A
PM6 3WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, SED FIPS	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	D3GCR	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	5WCR8	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	23VJP	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	K916X	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	8RJJ9	N/A	N/A
PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	N/A	N/A
PMPM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	F6V5P	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	Y8H7M	N/A	N/A
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	YM0T1	NGPR2	BA48
PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	N/A	N/A
Cimarron (Exos 7E8), HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 8TB SAS HDD	0N660	N/A	N/A
7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	N/A	N/A
7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	N/A	N/A
PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	N/A	N/A
PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	J9JW2	1.61
Non-expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	GXH37	7.1
NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	R39FM	3.33
HBA355i	Firmware DUP	Storage - HBA	K6MCJ	Y99R5	24.15.14.00

16G Hardware Lifecycle Host - AS-760

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
BOSS-N1	Driver DUP	BOSS-N1	2MFVD	N/A	Inbox
Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	R40PW	10.1.19928.8615
Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	3G71F	25.1
PERC H355 Adapter	Driver DUP	Storage - HBA	VCV6T	6R1TD	7.730.02.00
BIOS	Firmware DUP	BIOS	N/A	XK9CT	2.6.3
BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	33TD2	2.1.13.2033
CPLD	Firmware DUP	CPLD	N/A	503F0	1.2.6
iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	WN31M	7.20.30.50
Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	1H4PM	26.41.10.00
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 1.92TB SAS SSD	VRTN9	NGPR2	BA48
MG07, HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	FRHHG	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	TY3M5	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	MXM95	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	97GR0	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	XFNX0	N/A	N/A
PM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	15TVC	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	N/A	N/A
Kioxia KPM6XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	2XVX2	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 3.84TB SAS SSD	9N32F	N/A	N/A
PM6 3WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, SED FIPS	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	D3GCR	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	5WCR8	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	23VJP	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	K916X	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	8RJJ9	N/A	N/A
PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	N/A	N/A
PMPM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	F6V5P	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, IS	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	Y8H7M	N/A	N/A
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	YM0T1	NGPR2	BA48
PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	N/A	N/A
Cimarron (Exos 7E8), HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 8TB SAS HDD	0N660	N/A	N/A
7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	N/A	N/A
7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	N/A	N/A
PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	N/A	N/A
PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	J9JW2	1.61
Non-expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	GXH37	7.1
NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	R39FM	3.33
PERC H355 Adapter	Firmware DUP	Storage - HBA	VCV6T	PXRX0	52.30.0-6115

Switches

Platform	Type	Dell Part Number (P/N)	Supported Switch OS Version
Dell EMC PowerSwitch S5248F-ON	ToR	N/A	10.6.0.3

Other Components

Vendor	Platform	Component	Model	Firmware
NVIDIA	PowerEdge 760	GPU	L40S	95.02.66.00.02

Dell small form-factor pluggable modules

SFP Module	S5248F-ON Platform
10 GbE SR LC SFP+	X
10 GbE LR LC SFP+	X
25 GbE SR LC SFP28+	X
25 GbE LR LC SFP28+	X
40 GbE SR BiDi QSFP+	X
40 GbE SR MTP/MPO QSFP+	X
40 GbE LR MTP/MPO QSFP+	X
100 GbE SR MTP/MPO QSFP28+	X
100 GbE LR MTP/MPO QSFP28+	X
2x100BASE-2CR4 QSFP28-DD	X

Dell Customer Tools

Component	File Name	Supported Version
Dell Integrated System for Microsoft Azure Stack Hub OEM extension package with drivers and firmware updates	AzSHub_16G_Dell2504.2_OEMPackage.zip	2504.2
Dell Integrated System for Microsoft Azure Stack Hub HLH ISO	MS2406_Dell2504.6.iso	2504.6
Dell Integrated System for Microsoft Azure Stack Hub Lifecycle Manager	AzSHub_Dell2504.2_LifecycleManager.zip	2504.2

3.2 - Support Matrix for 2502

3.2.1 - Support Matrix for 14G - 2502

Dell Integrated System for Microsoft Azure Stack Hub - Valid from Dell 2502 release and Microsoft 2501 release

Abstract

This support matrix provides information about supported software and hardware configurations for Dell Integrated System for Microsoft Azure Stack Hub.

Introduction

The Dell Integrated System for Microsoft Azure Stack Hub Support Matrix describes supported drivers, firmware, applications, and hardware for Dell Integrated System for Microsoft Azure Stack Hub.

NOTE

All references to release dates refer to Dell Technologies releases, unless otherwise indicated.

14G Scale Units - PowerEdge R740xd

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	G65GH	1.1.4
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	C2VDG	7.00.00.174
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM6XVUG1T60	Firmware DUP	Storage - 1.6TB SAS SSD	GD3N0	NGPR2	BA48
KIOXIA KPM7XVUG1T60	Firmware DUP	Storage - 1.6TB SAS SSD	4TRHM	N/A	N/A
SAMSUNG MZILG1T6HCJRAD9	Firmware DUP	Storage - 1.6TB SAS SSD	TK47C	N/A	N/A
TOSHIBA PX05SMB160Y	Firmware DUP	Storage - 1.6TB SAS SSD	GVTYD	N/A	N/A
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	4CN85	NGPR2	BA48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	N/A	N/A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	N/A	N/A
HGST HUH721010AL4200	Firmware DUP	Storage - 10TB SAS HDD	YG2KH	MGW91	LS21
HGST HUH721010AL5200	Firmware DUP	Storage - 10TB SAS HDD	07FPR	MGW91	LS21
SEAGATE ST10000NM0256	Firmware DUP	Storage - 10TB SAS HDD	YF87J	CD2WP	TT56
SEAGATE ST10000NM0598	Firmware DUP	Storage - 10TB SAS HDD	HV5CH	N/A	N/A
TOSHIBA MG06SCA10TEY	Firmware DUP	Storage - 10TB SAS HDD	14YYC	4G5GY	EH0D
TOSHIBA MG07SCA12TEY	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
HGST HUH721212AL5200	Firmware DUP	Storage - 12TB SAS HDD	9HXK6	04PM5	NS11
SEAGATE ST12000NM006J	Firmware DUP	Storage - 12TB SAS HDD	M1C0T	N/A	N/A
SEAGATE ST12000NM007H	Firmware DUP	Storage - 12TB SAS HDD	FN7VR	N/A	N/A
SEAGATE ST12000NM009G	Firmware DUP	Storage - 12TB SAS HDD	7KT9W	N/A	N/A
SEAGATE ST12000NM0158	Firmware DUP	Storage - 12TB SAS HDD	YMN53	N/A	N/A
TOSHIBA MG09SCA12TEY	Firmware DUP	Storage - 12TB SAS HDD	0N96X	N/A	N/A
INTEL D3-S45100 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
HGST HUS726040ALS210	Firmware DUP	Storage - 4TB SAS HDD	X4FKY	N/A	N/A
HGST HUS726T4TALS200	Firmware DUP	Storage - 4TB SAS HDD	NT1X2	J5K8G	PU09
TOSHIBA MG04SCA40ENY	Firmware DUP	Storage - 4TB SAS HDD	1MVTT	RG9MK	EG03
TOSHIBA MG10SDA400NY	Firmware DUP	Storage - 4TB SAS HDD	9VN79	N/A	N/A
SEAGATE ST4000NM017A	Firmware DUP	Storage - 4TB SAS HDD	KRM6X	N/A	N/A
SEAGATE ST4000NM019B	Firmware DUP	Storage - 4TB SAS HDD	10N7R	N/A	N/A
SEAGATE ST4000NM0295	Firmware DUP	Storage - 4TB SAS HDD	W5M2R	XKD4M	DT34
SEAGATE ST6000NM035A	Firmware DUP	Storage - 6TB SAS HDD	CVTK9	N/A	N/A
TOSHIBA MG05ACA600E	Firmware DUP	Storage - 6TB SAS HDD	81Y15	N/A	N/A
TOSHIBA MG06SCA600EY	Firmware DUP	Storage - 6TB SAS HDD	XXPPV	4G5GY	EH0D
KIOXIA KPM6XMUG800G	Firmware DUP	Storage - 800GB SAS SSD	H6GCD	NGPR2	BA48
KIOXIA KPM7XVUG800G	Firmware DUP	Storage - 800GB SAS SSD	X96H8	N/A	N/A
WESTERN DIGITAL WUSTM3280BSS200	Firmware DUP	Storage - 800GB SAS SSD	F99F6	N/A	N/A
TOSHIBA PX05SMB080Y	Firmware DUP	Storage - 800GB SAS SSD	CN3JH	N/A	N/A
SEAGATE ST8000NM0185	Firmware DUP	Storage - 8TB SAS HDD	M40TH	6421F	PT55
TOSHIBA MG08SDA800EY	Firmware DUP	Storage - 8TB SAS HDD	NJWMG	N/A	N/A
TOSHIBA MG10SDA800EY	Firmware DUP	Storage - 8TB SAS HDD	VJDMM	N/A	N/A
HGST HUH721008AL4200	Firmware DUP	Storage - 8TB SAS HDD	CDDMJ	MGW91	LS21
HGST HUH721008AL5200	Firmware DUP	Storage - 8TB SAS HDD	KRDKK	MGW91	LS21
HGST HUS728T8TAL5200	Firmware DUP	Storage - 8TB SAS HDD	44YFV	8GM6M	RS09
SEAGATE ST8000NM014A	Firmware DUP	Storage - 8TB SAS HDD	0N660	N/A	N/A
SEAGATE ST8000NM015A	Firmware DUP	Storage - 8TB SAS HDD	K6646	N/A	N/A
SEAGATE ST8000NM0195	Firmware DUP	Storage - 8TB SAS HDD	DKGYV	N/A	N/A
SEAGATE ST8000NM0195	Firmware DUP	Storage - 8TB SAS HDD	KNYW0	N/A	N/A
SEAGATE ST8000NM024B	Firmware DUP	Storage - 8TB SAS HDD	C5HD0	NM6GP	LS0C
TOSHIBA MG06SCA800EY	Firmware DUP	Storage - 8TB SAS HDD	FV725	4G5GY	EH0D
KIOXIA KPM6WVUG960G	Firmware DUP	Storage - 960GB SAS SSD	J92FY	6DH0W	BD48
KIOXIA KPM6WVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WMWKG	6DH0W	BD48
KIOXIA KPM7WRUG960G	Firmware DUP	Storage - 960GB SAS SSD	T1RHN	N/A	N/A
KIOXIA KPM7XRUG960G	Firmware DUP	Storage - 960GB SAS SSD	KRVY1	N/A	N/A
KIOXIA KRM7VVUG960G	Firmware DUP	Storage - 960GB SAS SSD	05MT7	N/A	N/A
SAMSUNG MZILG960HCHQAD9	Firmware DUP	Storage - 960GB SAS SSD	RX1JG	N/A	N/A
KIOXIA KPM5XVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WFGTH	CPP97	B02A
KIOXIA KPM6WRUG960G	Firmware DUP	Storage - 960GB SAS SSD	R9RTY	6DH0W	BD48
SEAGATE KRM6VVUG960G	Firmware DUP	Storage - 960GB SAS SSD	42XXC	N/A	N/A
SEAGATE XS960LE70134	Firmware DUP	Storage - 960GB SAS SSD	2RDWT	N/A	N/A
SEAGATE XS960LE70154	Firmware DUP	Storage - 960GB SAS SSD	38R6V	N/A	N/A
TOSHIBA KPM5XVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WFGTH	CPP97	B02A
TOSHIBA PX05SVB096Y	Firmware DUP	Storage - 960GB SAS SSD	503M7	N/A	N/A
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
KIOXIA KRM7VRUG960G	Firmware DUP	Storage - 960GB vSAS SSD	6RNXC	N/A	N/A
SEAGATE XS960LE70095	Firmware DUP	Storage - 960GB vSAS SSD	2M1NG	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R640 All Flash

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	C2VDG	7.00.00.174
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	N/A	N/A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	N/A	N/A
KIOXIA KPM6XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	NKM7P	NGPR2	BA48
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	N/A	N/A
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	N/A	N/A
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	N/A	N/A
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	N/A	N/A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	N/A	N/A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	N/A	N/A
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	N/A	N/A
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	N/A	N/A
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	N/A	N/A
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	N/A	N/A
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	N/A	N/A
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	N/A	N/A
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	N/A	N/A
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	N/A	N/A
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R640 Tactical

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	C2VDG	7.00.00.174
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	N/A	N/A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	N/A	N/A
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	N/A	N/A
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	N/A	N/A
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	N/A	N/A
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	N/A	N/A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	N/A	N/A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	N/A	N/A
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	N/A	N/A
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	N/A	N/A
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	N/A	N/A
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	N/A	N/A
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	N/A	N/A
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	N/A	N/A
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	N/A	N/A
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	N/A	N/A
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R840 Dense

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	5T6CY	2.22.1
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	67GJY	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	C2VDG	7.00.00.174
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM6XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	NKM7P	NGPR2	BA48
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	N/A	N/A
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	N/A	N/A
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	N/A	N/A
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	N/A	N/A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	N/A	N/A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	N/A	N/A
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	N/A	N/A
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	N/A	N/A
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	N/A	N/A
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	N/A	N/A
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	N/A	N/A
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	N/A	N/A
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	N/A	N/A
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	N/A	N/A
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	NKNVC	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Hardware Lifecycle Host - PowerEdge R640

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Driver DUP	Network	N/A	6JHVK	23.0.0
PERC H330	Driver DUP	SAS HBA - Internal	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	C2VDG	7.00.00.174
INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Firmware DUP	Network	N/A	H8M48	20.5.16
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
PERC H330	Firmware DUP	SAS HBA - Internal	N/A	NYKX7	25.5.9.0001
HGST HUSTR7619ASS200	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	J68N1	N/A	N/A
KIOXIA KPM5XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	TDNP7	CPP97	B02A
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	2WVYG	CPP97	B02A
KIOXIA KPM6WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	7F2D1	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	VGMCD	N/A	N/A
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	6K35K	N/A	N/A
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	N15JP	N/A	N/A
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	59XF2	N/A	N/A
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	MFCD7	N/A	N/A
SAMSUNG MZILS1T9HEJH0D3	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	086DD	N/A	N/A
SAMSUNG MZILT1T9HAJQ0D3	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	F0VFY	N/A	N/A
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	N6DRV	N/A	N/A
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	91DPV	N/A	N/A
TOSHIBA KPM5XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	TDNP7	CPP97	B02A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	2WVYG	CPP97	B02A
TOSHIBA PX05SRB192Y	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	0FYFW	N/A	N/A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	V0K7V	N/A	N/A
WESTERN DIGITAL WUSTVA119BSS200	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	02X38	N/A	N/A
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD (Boot)	86XW7	N/A	N/A
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD (Boot)	K805Y	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

Switches

Platform	Type	Dell Part Number (P/N)	Supported Switch OS Version
Dell EMC PowerSwitch N3248TE-ON	MGMT	05WPCH	10.6.0.1
Dell EMC PowerSwitch S5248F-ON	ToR	N/A	10.6.0.1
Z9100-ON	Internal backend	N/A	10.6.0.1
Cisco 9348GC-FXP	MGMT	N/A	Minimum supported version:9.3(3)
Cisco 93180YC-FX	ToR	N/A	Minimum supported version:9.3(3)

Other Components

Vendor	Platform	Component	Model	Firmware
Nvidia	PowerEdge 640	GPU	T4	90.04.96.00.01
Nvidia	PowerEdge 840 Dense	GPU	V100s	88.00.98.00.01
Nvidia	PowerEdge 840 Dense	GPU	Mi25	N/A

Dell small form-factor pluggable modules

SFP Module	S3048-ON Platform	N3248TE-ON Platform	S4048-ON Platform	S5048F-ON Platform	S5248F-ON Platform
10 GbE SR LC SFP+	X	X	X	X	X
10 GbE LR LC SFP+	X	X	X	X	X
25 GbE SR LC SFP28+				X	X
25 GbE LR LC SFP28+				X	X
40 GbE SR BiDi QSFP+			X	X	X
40 GbE SR MTP/MPO QSFP+			X	X	X
40 GbE LR MTP/MPO QSFP+			X	X	X
100 GbE SR MTP/MPO QSFP28+		X		X	X
100 GbE LR MTP/MPO QSFP28+		X		X	X
2x100BASE-2CR4 QSFP28-DD					X

Dell Customer Tools

Component	File Name	Supported Version
Dell Customer Toolkit	AzS_DellEMC_CustomerToolkit_2502.5.zip	2502.5
Dell OEM extension package for drivers and firmware updates	AzS-DellEMC-2.4.2502.1.zip	2.4.2502.1
Dell HLH Rebuild to Windows Server 2022	HLH_DataDrive_2502.9_Redeployment.zip	2502.9
Dell Patch and Update Automation Tool	Dell_EMC_Patch_and_Update_Automation_QE_2.0.2502.16.exe	2.0.2502.16

3.2.2 - Support Matrix for 16G - 2502

Dell Integrated System for Microsoft Azure Stack Hub - Valid from Dell 2502 release and Microsoft 2501 release

Abstract

This support matrix provides information about supported software and hardware configurations for Dell Integrated System for Microsoft Azure Stack Hub.

Introduction

The Dell Integrated System for Microsoft Azure Stack Hub Support Matrix describes supported drivers, firmware, applications, and hardware for Dell Integrated System for Microsoft Azure Stack Hub.

NOTE

All references to release dates refer to Dell Technologies releases, unless otherwise indicated.

16G Scale Units - AS-760

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
BOSS-N1	Driver DUP	BOSS-N1	2MFVD	N/A	Inbox
Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	P7PJM	10.1.19928.8615
Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	G6M58	24.04.03
HBA355i	Driver DUP	Storage - HBA	K6MCJ	M2P63	2.61.48.00
BIOS	Firmware DUP	BIOS	N/A	K77XK	2.5.4
BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	33TD2	2.1.13.2033
CPLD	Firmware DUP	CPLD	N/A	503F0	1.2.6
iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	5MXXN	7.20.10.50
Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	1H4PM	26.41.10.00
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 1.92TB SAS SSD	VRTN9	NGPR2	BA48
MG07, HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	FRHHG	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	TY3M5	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	MXM95	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	97GR0	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	XFNX0	N/A	N/A
PM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	15TVC	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	N/A	N/A
Kioxia KPM6XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	2XVX2	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 3.84TB SAS SSD	9N32F	N/A	N/A
PM6 3WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, SED FIPS	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	D3GCR	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	5WCR8	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	23VJP	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	K916X	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	8RJJ9	N/A	N/A
PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	N/A	N/A
PMPM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	F6V5P	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	Y8H7M	N/A	N/A
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	YM0T1	NGPR2	BA48
PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	N/A	N/A
Cimarron (Exos 7E8), HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 8TB SAS HDD	0N660	N/A	N/A
7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	N/A	N/A
7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	N/A	N/A
PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	N/A	N/A
PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	J9JW2	1.61
Non-expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	GXH37	7.1
NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	WR74F	3.32
HBA355i	Firmware DUP	Storage - HBA	K6MCJ	Y99R5	24.15.14.00

16G Hardware Lifecycle Host - AS-760

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
BOSS-N1	Driver DUP	BOSS-N1	2MFVD	N/A	Inbox
Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	P7PJM	10.1.19928.8615
Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	G6M58	24.04.03
PERC H355 Adapter	Driver DUP	Storage - HBA	VCV6T	WC00M	7.726.01.0
BIOS	Firmware DUP	BIOS	N/A	K77XK	2.5.4
BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	33TD2	2.1.13.2033
CPLD	Firmware DUP	CPLD	N/A	503F0	1.2.6
iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	5MXXN	7.20.10.50
Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	1H4PM	26.41.10.00
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 1.92TB SAS SSD	VRTN9	NGPR2	BA48
MG07, HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	FRHHG	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	TY3M5	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	MXM95	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	97GR0	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	XFNX0	N/A	N/A
PM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	15TVC	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	N/A	N/A
Kioxia KPM6XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	2XVX2	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 3.84TB SAS SSD	9N32F	N/A	N/A
PM6 3WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, SED FIPS	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	D3GCR	N/A	N/A
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	5WCR8	N/A	N/A
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	23VJP	N/A	N/A
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	K916X	N/A	N/A
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	8RJJ9	N/A	N/A
PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	N/A	N/A
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	N/A	N/A
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	N/A	N/A
PMPM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	F6V5P	N/A	N/A
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, IS	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	N/A	N/A
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	Y8H7M	N/A	N/A
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	YM0T1	NGPR2	BA48
PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	N/A	N/A
Cimarron (Exos 7E8), HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 8TB SAS HDD	0N660	N/A	N/A
7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	N/A	N/A
7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	N/A	N/A
PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	N/A	N/A
PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	N/A	N/A
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	J9JW2	1.61
Non-expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	GXH37	7.1
NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	WR74F	3.32
PERC H355 Adapter	Firmware DUP	Storage - HBA	VCV6T	RRR7N	52.26.0-5179

Switches

Platform	Type	Dell Part Number (P/N)	Supported Switch OS Version
Dell EMC PowerSwitch S5248F-ON	ToR	N/A	10.6.0.1

Other Components

Vendor	Platform	Component	Model	Firmware
Nvidia	PowerEdge 760	GPU	L40S	95.02.66.00.02

Dell small form-factor pluggable modules

SFP Module	S5248F-ON Platform
10 GbE SR LC SFP+	X
10 GbE LR LC SFP+	X
25 GbE SR LC SFP28+	X
25 GbE LR LC SFP28+	X
40 GbE SR BiDi QSFP+	X
40 GbE SR MTP/MPO QSFP+	X
40 GbE LR MTP/MPO QSFP+	X
100 GbE SR MTP/MPO QSFP28+	X
100 GbE LR MTP/MPO QSFP28+	X
2x100BASE-2CR4 QSFP28-DD	X

Dell Customer Tools

Component	File Name	Supported Version
Dell Integrated Systems for Microsoft Azure Stack Hub OEM extension package with drivers and firmware updates	AzSHub_16G_Dell2502.3_OEMPackage.zip	2502.3
Dell Integrated Systems for Microsoft Azure Stack Hub HLH ISO	MS2406_Dell2502.5.iso	2502.5
Dell Integrated Systems for Microsoft Azure Stack Hub Lifecycle Manager	AzSHub_Dell2502.32_LifecycleManager.zip	2502.32

3.3 - Support Matrix for 2411

3.3.1 - Support Matrix for 14G - 2411

Dell Integrated System for Microsoft Azure Stack Hub - Valid from Dell 2411 release and Microsoft 2408 release

Abstract

This support matrix provides information about supported software and hardware configurations for Dell Integrated System for Microsoft Azure Stack Hub.

Introduction

The Dell Integrated System for Microsoft Azure Stack Hub Support Matrix describes supported drivers, firmware, applications, and hardware for Dell Integrated System for Microsoft Azure Stack Hub.

NOTE

All references to release dates refer to Dell Technologies releases, unless otherwise indicated.

14G Scale Units - PowerEdge R740xd

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	G65GH	1.1.4
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	XTFXJ	7.00.00.173
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM6XVUG1T60	Firmware DUP	Storage - 1.6TB SAS SSD	GD3N0	NGPR2	BA48
KIOXIA KPM7XVUG1T60	Firmware DUP	Storage - 1.6TB SAS SSD	4TRHM	69KVR	C106
SAMSUNG MZILG1T6HCJRAD9	Firmware DUP	Storage - 1.6TB SAS SSD	TK47C	G0NG4	DZG0
TOSHIBA PX05SMB160Y	Firmware DUP	Storage - 1.6TB SAS SSD	GVTYD	1DJXX	AS10
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	4CN85	NGPR2	BA48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	2H3MY	C406
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	25VW9	C106
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	3P4FR	BJ02
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	1YD58	CA0C
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	PFJ21	TBD
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	G04C8	4S0C
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	84K2D	4D0B
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	1DJXX	AS10
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	MRG3F	CA06
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	2PY92	CPE6
HGST HUH721010AL4200	Firmware DUP	Storage - 10TB SAS HDD	YG2KH	MGW91	LS21
HGST HUH721010AL5200	Firmware DUP	Storage - 10TB SAS HDD	07FPR	MGW91	LS21
SEAGATE ST10000NM0256	Firmware DUP	Storage - 10TB SAS HDD	YF87J	CD2WP	TT56
SEAGATE ST10000NM0598	Firmware DUP	Storage - 10TB SAS HDD	HV5CH	VTX9C	RSL5
TOSHIBA MG06SCA10TEY	Firmware DUP	Storage - 10TB SAS HDD	14YYC	4G5GY	EH0D
TOSHIBA MG07SCA12TEY	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
HGST HUH721212AL5200	Firmware DUP	Storage - 12TB SAS HDD	9HXK6	8VV2X	NS10
SEAGATE ST12000NM006J	Firmware DUP	Storage - 12TB SAS HDD	M1C0T	4JCT7	PSL9
SEAGATE ST12000NM007H	Firmware DUP	Storage - 12TB SAS HDD	FN7VR	6C75J	SWS3
SEAGATE ST12000NM009G	Firmware DUP	Storage - 12TB SAS HDD	7KT9W	31MF1	ESL3
SEAGATE ST12000NM0158	Firmware DUP	Storage - 12TB SAS HDD	YMN53	VTX9C	RSL5
TOSHIBA MG09SCA12TEY	Firmware DUP	Storage - 12TB SAS HDD	0N96X	XWG1Y	EM04
INTEL D3-S45100 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
HGST HUS726040ALS210	Firmware DUP	Storage - 4TB SAS HDD	X4FKY	68X4C	KU45
HGST HUS726T4TALS200	Firmware DUP	Storage - 4TB SAS HDD	NT1X2	8W21G	PU07
TOSHIBA MG04SCA40ENY	Firmware DUP	Storage - 4TB SAS HDD	1MVTT	RG9MK	EG03
TOSHIBA MG10SDA400NY	Firmware DUP	Storage - 4TB SAS HDD	9VN79	99TKP	TBD
SEAGATE ST4000NM017A	Firmware DUP	Storage - 4TB SAS HDD	KRM6X	4RM7F	DL67
SEAGATE ST4000NM019B	Firmware DUP	Storage - 4TB SAS HDD	10N7R	6X24T	LW08
SEAGATE ST4000NM0295	Firmware DUP	Storage - 4TB SAS HDD	W5M2R	XKD4M	DT34
SEAGATE ST6000NM035A	Firmware DUP	Storage - 6TB SAS HDD	CVTK9	61CR4	CSL7
TOSHIBA MG05ACA600E	Firmware DUP	Storage - 6TB SAS HDD	81Y15	5H8JW	GX6D
TOSHIBA MG06SCA600EY	Firmware DUP	Storage - 6TB SAS HDD	XXPPV	4G5GY	EH0D
KIOXIA KPM6XMUG800G	Firmware DUP	Storage - 800GB SAS SSD	H6GCD	NGPR2	BA48
KIOXIA KPM7XVUG800G	Firmware DUP	Storage - 800GB SAS SSD	X96H8	T7WXC	C10A
WESTERN DIGITAL WUSTM3280BSS200	Firmware DUP	Storage - 800GB SAS SSD	F99F6	X95FJ	G130
TOSHIBA PX05SMB080Y	Firmware DUP	Storage - 800GB SAS SSD	CN3JH	1DJXX	AS10
SEAGATE ST8000NM0185	Firmware DUP	Storage - 8TB SAS HDD	M40TH	6421F	PT55
TOSHIBA MG08SDA800EY	Firmware DUP	Storage - 8TB SAS HDD	NJWMG	1RCYJ	EL01
TOSHIBA MG10SDA800EY	Firmware DUP	Storage - 8TB SAS HDD	VJDMM	K9Y9V	TBD
HGST HUH721008AL4200	Firmware DUP	Storage - 8TB SAS HDD	CDDMJ	MGW91	LS21
HGST HUH721008AL5200	Firmware DUP	Storage - 8TB SAS HDD	KRDKK	MGW91	LS21
HGST HUS728T8TAL5200	Firmware DUP	Storage - 8TB SAS HDD	44YFV	27MDM	RS07
SEAGATE ST8000NM014A	Firmware DUP	Storage - 8TB SAS HDD	0N660	61CR4	CSL7
SEAGATE ST8000NM015A	Firmware DUP	Storage - 8TB SAS HDD	K6646	RP50F	CSNC
SEAGATE ST8000NM0195	Firmware DUP	Storage - 8TB SAS HDD	DKGYV	WKRV9	PT74
SEAGATE ST8000NM0195	Firmware DUP	Storage - 8TB SAS HDD	KNYW0	N2X70	PT71
SEAGATE ST8000NM024B	Firmware DUP	Storage - 8TB SAS HDD	C5HD0	NM6GP	LS0C
TOSHIBA MG06SCA800EY	Firmware DUP	Storage - 8TB SAS HDD	FV725	4G5GY	EH0D
KIOXIA KPM6WVUG960G	Firmware DUP	Storage - 960GB SAS SSD	J92FY	6DH0W	BD48
KIOXIA KPM6WVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WMWKG	6DH0W	BD48
KIOXIA KPM7WRUG960G	Firmware DUP	Storage - 960GB SAS SSD	T1RHN	TXDJ9	C40A
KIOXIA KPM7XRUG960G	Firmware DUP	Storage - 960GB SAS SSD	KRVY1	25VW9	C106
KIOXIA KRM7VVUG960G	Firmware DUP	Storage - 960GB SAS SSD	05MT7	1YD58	CA0C
SAMSUNG MZILG960HCHQAD9	Firmware DUP	Storage - 960GB SAS SSD	RX1JG	PFJ21	TBD
KIOXIA KPM5XVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WFGTH	CPP97	B02A
KIOXIA KPM6WRUG960G	Firmware DUP	Storage - 960GB SAS SSD	R9RTY	6DH0W	BD48
SEAGATE KRM6VVUG960G	Firmware DUP	Storage - 960GB SAS SSD	42XXC	3P4FR	BJ02
SEAGATE XS960LE70134	Firmware DUP	Storage - 960GB SAS SSD	2RDWT	G04C8	4S0C
SEAGATE XS960LE70154	Firmware DUP	Storage - 960GB SAS SSD	38R6V	84K2D	4D0B
TOSHIBA KPM5XVUG960G	Firmware DUP	Storage - 960GB SAS SSD	WFGTH	CPP97	B02A
TOSHIBA PX05SVB096Y	Firmware DUP	Storage - 960GB SAS SSD	503M7	1DJXX	AS10
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
KIOXIA KRM7VRUG960G	Firmware DUP	Storage - 960GB vSAS SSD	6RNXC	MRG3F	CA06
SEAGATE XS960LE70095	Firmware DUP	Storage - 960GB vSAS SSD	2M1NG	2PY92	CPE6
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R640 All Flash

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	XTFXJ	7.00.00.173
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	2H3MY	C406
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	25VW9	C106
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	3P4FR	BJ02
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	1YD58	CA0C
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	PFJ21	TBD
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	G04C8	4S0C
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	84K2D	4D0B
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	1DJXX	AS10
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	MRG3F	CA06
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	2PY92	CPE6
KIOXIA KPM6XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	NKM7P	NGPR2	BA48
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	FKXKC	C406
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	69KVR	C106
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	G0NG4	DZG0
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	TXDJ9	C40A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	T7WXC	C10A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	3P4FR	BJ02
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	1YD58	CA0C
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	PFJ21	TBD
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	G04C8	4S0C
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	84K2D	4D0B
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	1DJXX	AS10
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	MRG3F	CA06
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	2PY92	CPE6
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	XTC9D	TBD
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R640 Tactical

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	XTFXJ	7.00.00.173
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	VGMCD	2H3MY	C406
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	6K35K	25VW9	C106
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	N15JP	3P4FR	BJ02
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	59XF2	1YD58	CA0C
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD	MFCD7	PFJ21	TBD
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD	N6DRV	G04C8	4S0C
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD	91DPV	84K2D	4D0B
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD	2WVYG	CPP97	B02A
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD	V0K7V	1DJXX	AS10
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD	86XW7	MRG3F	CA06
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD	K805Y	2PY92	CPE6
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	FKXKC	C406
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	69KVR	C106
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	G0NG4	DZG0
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	TXDJ9	C40A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	T7WXC	C10A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	3P4FR	BJ02
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	1YD58	CA0C
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	PFJ21	TBD
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	84K2D	4D0B
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	G04C8	4S0C
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	1DJXX	AS10
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	MRG3F	CA06
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	2PY92	CPE6
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	XTC9D	TBD
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	124X2	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Scale Units - PowerEdge R840 Dense

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
Mellanox ConnectX-4 LX / 25GbE	Driver DUP	Network / RDMA	N/A	G6M58	24.04.03
Dell HBA330	Driver DUP	Storage - HBA	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	5T6CY	2.22.1
BOSS-S1 Firmware	Firmware DUP	BOSS-S1	N/A	3P39V	2.5.13.3024
CPLD	Firmware DUP	CPLD	N/A	67GJY	1.0.6
iDRAC with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	XTFXJ	7.00.00.173
Mellanox ConnectX-4 LX / 25GbE	Firmware DUP	Network/RDMA	N/A	PY7FC	14.32.20.04
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
KIOXIA KPM6XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	NKM7P	NGPR2	BA48
KIOXIA KPM7WVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	RGP9J	FKXKC	C406
KIOXIA KPM7XVUG3T20	Firmware DUP	Storage - 3.2TB SAS SSD	V0X40	69KVR	C106
SAMSUNG MZILG3T2HCLSAD9	Firmware DUP	Storage - 3.2TB SAS SSD	5DVPV	G0NG4	DZG0
KIOXIA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
KIOXIA KPM6WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FH1W9	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
KIOXIA KPM6WVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	81H9C	6DH0W	BD48
KIOXIA KPM7WRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	YTVTF	TXDJ9	C40A
KIOXIA KPM7XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	MT0R5	T7WXC	C10A
KIOXIA KRM6VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	FXYGR	3P4FR	BJ02
KIOXIA KRM7VVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	M0JVN	1YD58	CA0C
SAMSUNG MZILG3T8HCLSAD9	Firmware DUP	Storage - 3.84TB SAS SSD	H62RF	PFJ21	TBD
SEAGATE XS3840LE70134	Firmware DUP	Storage - 3.84TB SAS SSD	YM9HP	G04C8	4S0C
SEAGATE XS3840LE70154	Firmware DUP	Storage - 3.84TB SAS SSD	NWGX3	84K2D	4D0B
TOSHIBA KPM5XVUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	91W3V	CPP97	B02A
TOSHIBA PX05SVB384Y	Firmware DUP	Storage - 3.84TB SAS SSD	3DDFT	1DJXX	AS10
KIOXIA KRM7VRUG3T84	Firmware DUP	Storage - 3.84TB vSAS SSD	VJNDD	MRG3F	CA06
SEAGATE XS3840LE70095	Firmware DUP	Storage - 3.84TB vSAS SSD	FT95M	2PY92	CPE6
SEAGATE XS3840LE70115	Firmware DUP	Storage - 3.84TB vSAS SSD	DHK7V	XTC9D	TBD
INTEL S3520 RI M.2 SSD SSDSCKJB480G7R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	WCP9P	CHJGV	DL43
INTEL S4510 RI M.2 SSD SSDSCKKB480G8R (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7FXC3	Y1P10	DL6R
INTEL S4520 RR M.2 SSD SSDSC2KB960GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GX439	9RF8X	DL7A
INTEL S4520 RR M.2 SSD SSDSCKKB480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	M7F5D	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG480GZR (Boot)	Firmware DUP	Storage - 480GB SATA SSD	00DJ5	9RF8X	DL7A
MICRON 5100 Pro M.2 SSD MTFDDAV480TCB (Boot)	Firmware DUP	Storage - 480GB SATA SSD	GPGC0	YM8KY	E013
MICRON 5300 Pro M.2 SSD MTFDDAV480TDS (Boot)	Firmware DUP	Storage - 480GB SATA SSD	7RKD7	PWVX5	J004
MICRON 5400 Pro M.2 SSD MTFDDAV480TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 480GB SATA SSD	VN68H	RJ0WY	K003
KIOXIA KPM6XVUG6T40	Firmware DUP	Storage - 6.4TB SAS SSD	6NW3J	NGPR2	BA48
INTEL S4520 RR M.2 SSD SSDSC2KB480GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	F6H8H	9RF8X	DL7A
INTEL S4620 RR M.2 SSD SSDSC2KG960GZR (Boot)	Firmware DUP	Storage - 960GB SATA SSD	8MHYH	9RF8X	DL7A
MICRON 5400 Pro M.2 SSD MTFDDAV960TGA-1BC1ZABDA (Boot)	Firmware DUP	Storage - 960GB SATA SSD	KHRN0	RJ0WY	K003
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
Dell HBA330	Firmware DUP	Storage - HBA	N/A	NKNVC	16.17.01.00
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

14G Hardware Lifecycle Host - PowerEdge R640

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
INTEL C600/C610/C220/C230/C2000 Series	Driver DUP	Chipset	N/A	4DDMJ	10.1.19913.8607
INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Driver DUP	Network	N/A	6JHVK	23.0.0
PERC H330	Driver DUP	SAS HBA - Internal	N/A	N/A	Native
BIOS	Firmware DUP	BIOS	N/A	F8GPH	2.22.2
CPLD	Firmware DUP	CPLD	N/A	9N4DH	1.0.6
iDRAC with Lifecycle controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	XTFXJ	7.00.00.173
INTEL X710 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, NDC	Firmware DUP	Network	N/A	H8M48	20.5.16
Dell SEP Non-expander Storage Backplane	Firmware DUP	Non-expander Storage Backplane	N/A	VV85D	4.35
PERC H330	Firmware DUP	SAS HBA - Internal	N/A	NYKX7	25.5.9.0001
HGST HUSTR7619ASS200	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	J68N1	PTK2C	S524
KIOXIA KPM5XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	TDNP7	CPP97	B02A
KIOXIA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	2WVYG	CPP97	B02A
KIOXIA KPM6WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	7F2D1	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	1081V	6DH0W	BD48
KIOXIA KPM6WVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	DHWH5	6DH0W	BD48
KIOXIA KPM7WRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	VGMCD	2H3MY	C406
KIOXIA KPM7XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	6K35K	25VW9	C106
KIOXIA KRM6VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	N15JP	3P4FR	BJ02
KIOXIA KRM7VVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	59XF2	1YD58	CA0C
SAMSUNG MZILG1T9HCJRAD9	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	MFCD7	PFJ21	TBD
SAMSUNG MZILS1T9HEJH0D3	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	086DD	XNGNT	DSLA
SAMSUNG MZILT1T9HAJQ0D3	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	F0VFY	J3RRK	DSF8
SEAGATE XS1920LE70134	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	N6DRV	G04C8	4S0C
SEAGATE XS1920LE70154	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	91DPV	84K2D	4D0B
TOSHIBA KPM5XRUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	TDNP7	CPP97	B02A
TOSHIBA KPM5XVUG1T92	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	2WVYG	CPP97	B02A
TOSHIBA PX05SRB192Y	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	0FYFW	1DJXX	AS10
TOSHIBA PX05SVB192Y	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	V0K7V	1DJXX	AS10
WESTERN DIGITAL WUSTVA119BSS200	Firmware DUP	Storage - 1.92TB SAS SSD (Boot)	02X38	X95FJ	G130
KIOXIA KRM7VRUG1T92	Firmware DUP	Storage - 1.92TB vSAS SSD (Boot)	86XW7	MRG3F	CA06
SEAGATE XS1920LE70095	Firmware DUP	Storage - 1.92TB vSAS SSD (Boot)	K805Y	2PY92	CPE6
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	60K1J	2.52
uEFI diag	Tools-Software	Dell 64 Bit uEFI Diagnostics	N/A	Y5CF5	4301A38

Switches

Platform	Type	Dell Part Number (P/N)	Supported Switch OS Version
Dell EMC PowerSwitch S3048-ON	MGMT	0TWR5D	9.14.2.23
Dell EMC PowerSwitch N3248TE-ON	MGMT	05WPCH	10.5.6.5
Dell EMC PowerSwitch S4048-ON	ToR	08N75N	9.14.2.23
Dell EMC PowerSwitch S5048-ON	ToR	WR6R5	9.14.2.23
Dell EMC PowerSwitch S5248F-ON	ToR	N/A	10.5.6.5
Z9100-ON	Internal backend	N/A	10.5.6.5
Cisco 9348GC-FXP	MGMT	N/A	Minimum supported version:9.3(3)
Cisco 93180YC-FX	ToR	N/A	Minimum supported version:9.3(3)

Other Components

Vendor	Platform	Component	Model	Firmware
Nvidia	PowerEdge 640	GPU	T4	90.04.96.00.01
Nvidia	PowerEdge 840 Dense	GPU	V100s	88.00.98.00.01
Nvidia	PowerEdge 840 Dense	GPU	Mi25	N/A

Dell small form-factor pluggable modules

SFP Module	S3048-ON Platform	N3248TE-ON Platform	S4048-ON Platform	S5048F-ON Platform	S5248F-ON Platform
10 GbE SR LC SFP+	X	X	X	X	X
10 GbE LR LC SFP+	X	X	X	X	X
25 GbE SR LC SFP28+				X	X
25 GbE LR LC SFP28+				X	X
40 GbE SR BiDi QSFP+			X	X	X
40 GbE SR MTP/MPO QSFP+			X	X	X
40 GbE LR MTP/MPO QSFP+			X	X	X
100 GbE SR MTP/MPO QSFP28+		X		X	X
100 GbE LR MTP/MPO QSFP28+		X		X	X
2x100BASE-2CR4 QSFP28-DD					X

Dell Customer Tools

Component	File Name	Supported Version
Dell Customer Toolkit	AzS_DellEMC_CustomerToolkit_2411.4.zip	2411.4
Dell OEM extension package for drivers and firmware updates	AzS-DellEMC-2.4.2411.1.zip	2.4.2411.1
Dell HLH Rebuild to Windows Server 2022	HLH_DataDrive_2411.12_Redeployment.zip	2411.12
Dell Patch and Update Automation Tool	Dell_EMC_Patch_and_Update_Automation_QE_2.0.2411.4.exe	2.0.2411.4
Dell Node Expansion scripts	DELLEMCNodeExpansion_1.27.2411.7.zip	1.27.2411.7

3.3.2 - Support Matrix for 16G - 2411

Dell Integrated System for Microsoft Azure Stack Hub - Valid from Dell 2411 release and Microsoft 2408 release

Abstract

This support matrix provides information about supported software and hardware configurations for Dell Integrated System for Microsoft Azure Stack Hub.

Introduction

The Dell Integrated System for Microsoft Azure Stack Hub Support Matrix describes supported drivers, firmware, applications, and hardware for Dell Integrated System for Microsoft Azure Stack Hub.

NOTE

All references to release dates refer to Dell Technologies releases, unless otherwise indicated.

16G Scale Units - AS-760

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
BOSS-N1	Driver DUP	BOSS-N1	2MFVD	N/A	Inbox
Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	P7PJM	10.1.19928.8615
Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	G6M58	24.04.03
HBA355i	Driver DUP	Storage - HBA	K6MCJ	M2P63	2.61.48.00
BIOS	Firmware DUP	BIOS	N/A	PJYMD	2.4.4
BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	3P9J3	2.1.13.2025
CPLD	Firmware DUP	CPLD	N/A	503F0	1.2.6
iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	92MM7	7.10.90.00
Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	1H4PM	26.41.10.00
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 1.92TB SAS SSD	VRTN9	NGPR2	BA48
MG07, HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	FRHHG	WFYW1	1.0.1
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	TY3M5	KMG76	1.1.0
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	MXM95	0G35R	2.0.0
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	97GR0	H5XX0	2.1.8
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	XFNX0	11FGY	2.0.0
PM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	15TVC	N/A	2.0.2
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	5V3P7	2.5.0
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	F6TGN	1.1.2
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	3X8R4	1.2.0
Kioxia KPM6XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	2XVX2	NGPR2	BA48
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 3.84TB SAS SSD	9N32F	FMKMG	DSG8
PM6 3WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, SED FIPS	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	D3GCR	WFYW1	1.0.1
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	5WCR8	KMG76	1.1.0
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	23VJP	0G35R	2.0.0
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	K916X	H5XX0	2.1.8
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	8RJJ9	11FGY	2.0.0
PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	3JJHC	1.2.2
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	5V3P7	2.5.0
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	F6TGN	1.1.2
PMPM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	F6V5P	N/A	2.0.2
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, IS	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	3X8R4	1.2.0
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	Y8H7M	FMKMG	DSG8
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	YM0T1	NGPR2	BA48
PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	T21WT	C10E
Cimarron (Exos 7E8), HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 8TB SAS HDD	0N660	0HG6Y	CSLE
7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	N71F4	1.6.0
7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	HNW5G	1.1.0
PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	R2TTT	1.3.0
PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	CDKNW	1.1.0
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	J9JW2	1.61
Non-expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	GXH37	7.1
NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	WR74F	3.32
HBA355i	Firmware DUP	Storage - HBA	K6MCJ	Y99R5	24.15.14.00

16G Hardware Lifecycle Host - AS-760

Component	Type	Category	Dell Part Number (P/N)	Software Bundle (SWB)	Supported Version
BOSS-N1	Driver DUP	BOSS-N1	2MFVD	N/A	Inbox
Chipset driver for 16G Intel platforms	Driver DUP	Chipset	N/A	P7PJM	10.1.19928.8615
Nvidia ConnectX-6 Lx	Driver DUP	Network/RDMA	R5WK9	G6M58	24.04.03
PERC H355 Adapter	Driver DUP	Storage - HBA	VCV6T	WC00M	7.726.01.0
BIOS	Firmware DUP	BIOS	N/A	PJYMD	2.4.4
BOSS-N1	Firmware DUP	BOSS-N1	2MFVD	3P9J3	2.1.13.2025
CPLD	Firmware DUP	CPLD	N/A	503F0	1.2.6
iDRAC9 with Lifecycle Controller	Firmware DUP	iDRAC with Lifecycle Controller	N/A	92MM7	7.10.90.00
Nvidia ConnectX-6 Lx	Firmware DUP	Network/RDMA	R5WK9	1H4PM	26.41.10.00
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 1.92TB SAS SSD	VRTN9	NGPR2	BA48
MG07, HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 12TB SAS HDD	DK7C9	NFFHM	EI0D
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	FRHHG	WFYW1	1.0.1
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	TY3M5	KMG76	1.1.0
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	MXM95	0G35R	2.0.0
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	97GR0	H5XX0	2.1.8
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	XFNX0	11FGY	2.0.0
PM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	15TVC	N/A	2.0.2
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	V69W3	5V3P7	2.5.0
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	617H6	JN1W7	1.1.1
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 3.2TB NVMe SSD	9VWPD	3X8R4	1.2.0
Kioxia KPM6XRUG3T84	Firmware DUP	Storage - 3.84TB SAS SSD	2XVX2	NGPR2	BA48
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 3.84TB SAS SSD	9N32F	FMKMG	DSG8
PM6 3WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, SED FIPS	Firmware DUP	Storage - 3.84TB SAS SSD	MD4YN	6DH0W	BD48
7450 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	D3GCR	WFYW1	1.0.1
Arbordale Plus RR (P5620) SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	5WCR8	KMG76	1.1.0
CD8 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	23VJP	0G35R	2.0.0
CM6 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	K916X	H5XX0	2.1.8
CM7 DP 3WPD, SSD, Gen5 NVMe, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	8RJJ9	11FGY	2.0.0
PM1725b SP 3WPD, SSD, Gen3 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	08NMX	DYC3X	1.1.0
PM1735 V2 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	H8D5M	5V3P7	2.5.0
PM1735a SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	9F6Y3	F6TGN	1.1.2
PMPM1735 SP 3WPD, SSD, Gen4 NVMe, 2.5, 512e, ISE	Firmware DUP	Storage - 6.4TB NVMe SSD	F6V5P	N/A	2.0.2
PS1030 SP 3WPD, SSD, Gen4 NVMe, 2.5 15mm, 512e, IS	Firmware DUP	Storage - 6.4TB NVMe SSD	PYMY6	3X8R4	1.2.0
PM1653 1WPD, SSD, 24Gbps SAS, 2.5, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	Y8H7M	FMKMG	DSG8
PM6 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	YM0T1	NGPR2	BA48
PM7 1WPD, SSD, 24Gbps SAS, 2.5 15mm, 512e, ISE	Firmware DUP	Storage - 7.68TB SAS SSD	7N1WT	T21WT	C10E
Cimarron (Exos 7E8), HDD, 12Gbps SAS, 3.5, 7.2K, 512e, ISE	Firmware DUP	Storage - 8TB SAS HDD	0N660	0HG6Y	CSLE
7400 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PRV6C	N71F4	1.6.0
7450 SP 1WPD, SSD, Gen4 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	PH7J6	HNW5G	1.1.0
PE8010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	21GXV	R2TTT	1.3.0
PE9010 SP 1WPD, SSD, Gen3 NVMe, M.2 22x80, 512e, ISE (Boot)	Firmware DUP	Storage - 960GB NVMe SSD	XN5KG	CDKNW	1.1.0
Expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	J9JW2	1.61
Non-expander Storage Backplane	Firmware DUP	Storage - Backplane	N/A	GXH37	7.1
NVMe Switch Storage Backplane	Firmware DUP	Storage - Backplane	N/A	WR74F	3.32
PERC H355 Adapter	Firmware DUP	Storage - HBA	VCV6T	RRR7N	52.26.0-5179

Switches

Platform	Type	Dell Part Number (P/N)	Supported Switch OS Version
Dell EMC PowerSwitch S5248F-ON	ToR	N/A	10.5.6.5

Other Components

Vendor	Platform	Component	Model	Firmware
Nvidia	PowerEdge 760	GPU	L40S	95.02.66.00.02

Dell small form-factor pluggable modules

SFP Module	S5248F-ON Platform
10 GbE SR LC SFP+	X
10 GbE LR LC SFP+	X
25 GbE SR LC SFP28+	X
25 GbE LR LC SFP28+	X
40 GbE SR BiDi QSFP+	X
40 GbE SR MTP/MPO QSFP+	X
40 GbE LR MTP/MPO QSFP+	X
100 GbE SR MTP/MPO QSFP28+	X
100 GbE LR MTP/MPO QSFP28+	X
2x100BASE-2CR4 QSFP28-DD	X

Dell Customer Tools

Component	File Name	Supported Version
Dell Integrated Systems for Microsoft Azure Stack Hub OEM extension package with drivers and firmware updates	AzSHub_16G_Dell2411.6_OEMPackage.zip	2411.6
Dell Integrated Systems for Microsoft Azure Stack Hub HLH ISO	MS2406_Dell2411.10.iso	2411.10

4 - Node Expansion

4.1 - Node Expansion for 16G

Introduction

This document will guide users through how to add one or more scale unit nodes to their Dell Integrated System for Microsoft Azure Stack Hub that is fully installed and operational.

For the official Microsoft documentation on node expansion, see Add scale unit nodes - Azure Stack Hub.

Solution overview

The only way to increase the capacity of an Azure Stack Hub integrated system is to add more physical computers to the existing scale unit. The scale unit is a collection of physical computers that work together to provide compute, storage, and networking resources. Each physical computer in the scale unit is referred to as a scale unit node.

In order to add a scale unit node, you will need to physically rack, stack, and cable the new node(s), configure Top-of-Rack (ToR) switches, ensure firmware and BIOS configuration match the existing nodes, and add the new node(s) to the Azure Stack Hub integrated system via the Azure Stack Hub administrator portal. This document will guide you through this process.

NOTE

A single scale unit can support up to 16 nodes. You can add scale unit nodes to a scale unit until it reaches its maximum capacity.

Audience

This node expansion guide is for Azure Stack Hub 16th-generation (16G) operators and the Dell Customer Service team who intend to add scale unit nodes to an existing Azure Stack Hub integrated system.

End-to-end deployment workflow

Prerequisites

Ensure the following before you can add a node:

Administrator access to the Azure Stack Hub integrated system.
The rack and the power distribution unit (PDU) must be able to accommodate the new nodes.
New scale unit (SU) nodes must use the same hardware configuration as the existing Azure Stack Hub scale unit nodes.
The Azure Stack Hub integrated system must have the most current Microsoft and Dell Technologies patches and updates. If it does not, update it with the most recent patches and update versions before starting the node expansion process.
The Azure Stack Hub integrated system must be healthy. Check the health state by logging in to the Azure Stack Hub administrator portal. Any active health alerts must be resolved before adding a scale unit node.

Rack, stack, and cable physical nodes

After the new scale unit node or nodes arrive at the customer site, on-site engineers must perform the manual process to rack, stack, and cable the new node(s).

Refer to the following diagrams for Top-of-Rack (ToR) switches cabling guidance.

Scale unit node to ToR-1 network cabling

Scale unit node to ToR-2 network cabling

Check Component Readiness

After the new scale unit node or nodes are racked and cabled, power on the new node or nodes and check the LED indicator lights to ensure that all power supply and network cables are connected. See steps below on checking power readiness and checking network fabric connectivity before proceeding with a scale unit node expansion.

Check Power Readiness

To check power readiness, perform the following steps:

Steps

Use a separate power bus for each power distribution unit (PDU).
Ensure that the PDUs are firmly connected to the applicable power sources.
Ensure that the PDUs are powered on.
All servers and switches are equipped with dual power supplies. Ensure that these power supplies are connected to separate PDUs to ensure power redundancy.

Checking network fabric connectivity

Ensure that the new and existing scale unit nodes are connected to the ToR switches.

The odd numbered nodes iDRAC (OoB) port connects to the ToR-1 switch.
The even numbered nodes iDRAC (OoB) port connects to the ToR-2 switch.
The Slot 6 Port 1 port is connected to the ToR-1 switch.
The Slot 6 Port 2 port is connected to the ToR-2 switch.

The following figure shows the port locations for an AS-760 server.

S5248F-ON ToR-1 port map

The following table lists the Slot 6 Port 1 connections, cable types, node ports, and switch ports to the S5248F-ON ToR-1 switch.

Origin	Destination	Cable Type
ToR-1 Port 1	Slot 6 Port 1 on Node 1 (AS-760)	25 GbE Twinax
ToR-1 Port 2	Slot 6 Port 1 on Node 2 (AS-760)	25 GbE Twinax
ToR-1 Port 3	Slot 6 Port 1 on Node 3 (AS-760)	25 GbE Twinax
ToR-1 Port 4	Slot 6 Port 1 on Node 4 (AS-760)	25 GbE Twinax
ToR-1 Port 5	Slot 6 Port 1 on Node 5 (AS-760)	25 GbE Twinax
ToR-1 Port 6	Slot 6 Port 1 on Node 6 (AS-760)	25 GbE Twinax
ToR-1 Port 7	Slot 6 Port 1 on Node 7 (AS-760)	25 GbE Twinax
ToR-1 Port 8	Slot 6 Port 1 on Node 8 (AS-760)	25 GbE Twinax
ToR-1 Port 9	Slot 6 Port 1 on Node 9 (AS-760)	25 GbE Twinax
ToR-1 Port 10	Slot 6 Port 1 on Node 10 (AS-760)	25 GbE Twinax
ToR-1 Port 11	Slot 6 Port 1 on Node 11 (AS-760)	25 GbE Twinax
ToR-1 Port 12	Slot 6 Port 1 on Node 12 (AS-760)	25 GbE Twinax
ToR-1 Port 13	Slot 6 Port 1 on Node 13 (AS-760)	25 GbE Twinax
ToR-1 Port 14	Slot 6 Port 1 on Node 14 (AS-760)	25 GbE Twinax
ToR-1 Port 15	Slot 6 Port 1 on Node 15 (AS-760)	25 GbE Twinax
ToR-1 Port 16	Slot 6 Port 1 on Node 16 (AS-760)	25 GbE Twinax

The following table lists the iDRAC connections, cable types, node ports, and switch ports to the S5248F-ON ToR-1 switch.

Origin	Destination	Cable Type
ToR-1 Port 25	iDRAC on Node 1 (AS-760)	1GbE Cat-6
ToR-1 Port 26	iDRAC on Node 3 (AS-760)	1GbE Cat-6
ToR-1 Port 27	iDRAC on Node 5 (AS-760)	1GbE Cat-6
ToR-1 Port 28	iDRAC on Node 7 (AS-760)	1GbE Cat-6
ToR-1 Port 29	iDRAC on Node 9 (AS-760)	1GbE Cat-6
ToR-1 Port 30	iDRAC on Node 11 (AS-760)	1GbE Cat-6
ToR-1 Port 31	iDRAC on Node 13 (AS-760)	1GbE Cat-6
ToR-1 Port 32	iDRAC on Node 15 (AS-760)	1GbE Cat-6

S5248F-ON ToR-2 port map

The following table lists the Slot 6 Port 2 connections, cable types, node ports, and switch ports to the S5248F-ON ToR-2 switch.

Origin	Destination	Cable Type
ToR-2 Port 1	Slot 6 Port 2 on Node 1 (AS-760)	25 GbE Twinax
ToR-2 Port 2	Slot 6 Port 2 on Node 2 (AS-760)	25 GbE Twinax
ToR-2 Port 3	Slot 6 Port 2 on Node 3 (AS-760)	25 GbE Twinax
ToR-2 Port 4	Slot 6 Port 2 on Node 4 (AS-760)	25 GbE Twinax
ToR-2 Port 5	Slot 6 Port 2 on Node 5 (AS-760)	25 GbE Twinax
ToR-2 Port 6	Slot 6 Port 2 on Node 6 (AS-760)	25 GbE Twinax
ToR-2 Port 7	Slot 6 Port 2 on Node 7 (AS-760)	25 GbE Twinax
ToR-2 Port 8	Slot 6 Port 2 on Node 8 (AS-760)	25 GbE Twinax
ToR-2 Port 9	Slot 6 Port 2 on Node 9 (AS-760)	25 GbE Twinax
ToR-2 Port 10	Slot 6 Port 2 on Node 10 (AS-760)	25 GbE Twinax
ToR-2 Port 11	Slot 6 Port 2 on Node 11 (AS-760)	25 GbE Twinax
ToR-2 Port 12	Slot 6 Port 2 on Node 12 (AS-760)	25 GbE Twinax
ToR-2 Port 13	Slot 6 Port 2 on Node 13 (AS-760)	25 GbE Twinax
ToR-2 Port 14	Slot 6 Port 2 on Node 14 (AS-760)	25 GbE Twinax
ToR-2 Port 15	Slot 6 Port 2 on Node 15 (AS-760)	25 GbE Twinax
ToR-2 Port 16	Slot 6 Port 2 on Node 16 (AS-760)	25 GbE Twinax

The following table lists the iDRAC connections, cable types, node ports, and switch ports to the S5248F-ON ToR-2 switch.

Origin	Destination	Cable Type
ToR-2 Port 25	iDRAC on Node 2 (AS-760)	1GbE Cat-6
ToR-2 Port 26	iDRAC on Node 4 (AS-760)	1GbE Cat-6
ToR-2 Port 27	iDRAC on Node 6 (AS-760)	1GbE Cat-6
ToR-2 Port 28	iDRAC on Node 8 (AS-760)	1GbE Cat-6
ToR-2 Port 29	iDRAC on Node 10 (AS-760)	1GbE Cat-6
ToR-2 Port 30	iDRAC on Node 12 (AS-760)	1GbE Cat-6
ToR-2 Port 31	iDRAC on Node 14 (AS-760)	1GbE Cat-6
ToR-2 Port 32	iDRAC on Node 16 (AS-760)	1GbE Cat-6

Configure ToR Switches

Using a crash cart with a serial connection or an SSH connection to the ToR switches, ensure that all ports that have a new node connected have been configured correctly.

To configure the ToR switches, perform the following steps:

Steps

Once logged in type the commands below to configure the data link connections to the newly added scale unit nodes. For example, if wishing to expand a four-node scale unit with additional four nodes, you would run the below on the switch:

conf t
interface range ethernet 1/1/5-1/1/8
description "CL01 Nodes NIC"
no shutdown
switchport mode trunk
switchport access vlan 7
switchport trunk allowed vlan 107
mtu 9216
flowcontrol receive off
priority-flow-control mode on
service-policy input type network-qos AZS_SERVICES_pfc
service-policy output type queuing AZS_SERVICES_ets
ets mode on
qos-map traffic-class AZS_SERVICES_Que
spanning-tree bpduguard enable
spanning-tree guard root
spanning-tree port type edge
exit

Once the data link port or ports are configured on the switch proceed to configuring the BMC Management ports. For example, if wishing to expand a four-node scale unit with an additional four nodes, you would run the below on the switch:
```
conf t
interface range ethernet 1/1/27:1-1/1/28:1
description "BMCMgmt Ports"
no shutdown
switchport access vlan 125
mtu 9216
flowcontrol receive off
spanning-tree bpduguard enable
spanning-tree guard root
end
```
Once the BMC Management port or ports have been configured you will need to run the command below to write the new configuration into memory on the switch:
```
copy running-configuration startup-configuration
```
Once you have completed steps 1-4, repeat them on the ToR-2 switch.

Accessing the iDRAC Direct port

The iDRAC Direct port is a USB port located on the front of the server and is used to access the iDRAC web interface, RACADM, and Redfish API, without needing to connect to the network.

NOTE

The factory default defined iDRAC administrator credential username will be azsinstall and the password will be azsinstall. This credential will be rotated as part of the node expansion process.

To access the iDRAC Direct port, perform the following steps:

Steps

To access the iDRAC Direct port, you must connect a USB Type A to micro-USB cable from a laptop or mobile KVM host to the micro-USB port on the front of the server.
From your host, turn off any wireless networks and disconnect from any other hard-wired networks.
Connect a USB Type A to micro-USB cable from your host to the iDRAC Direct micro-USB port located on the front control panel of the AS-760 server.

AS-760 front view with iDRAC Direct port highlighted

Wait for the host to acquire an IP address of 169.254.0.4. It may take several seconds for the IP address to be acquired. The iDRAC will acquire an IP address of 169.254.0.3.
Open a web browser and provide the iDRAC Direct port IP address as the URL. For example, https://169.254.0.3.
At the certificate warning window, click Advanced and then click Proceed to 169.254.0.3 (unsafe).

Enter the factory default username and password for the iDRAC, and click Log In.

Assigning iDRAC IP addresses to the new scale unit nodes for expansion

The iDRAC IP address assignment is a manual step. The iDRAC Direct port can be leveraged on the node(s) to assign the iDRAC IP addresses based on the assigned BMC management (BMCMgmt) network IP address from the Azure Stack Hub deployment worksheet.

To manually assign the iDRAC IP addresses to the new scale unit nodes for expansion, perform the following steps:

Steps

The below steps will be repeated for each new scale unit node to be added.

Follow the steps previously mentioned on Accessing the iDRAC Direct port.
From the iDRAC dashboard, browse to iDRAC Settings > Connectivity and expand the Network > IPv4 Settings menu.

iDRAC Settings > Network > IPv4 Settings menu

Set the static IP address, static gateway, and static subnet mask according to the values defined in the Azure Stack Hub deployment worksheet. These IP addresses are defined by the BMCMgmt /26 subnet provided to the deployment worksheet.
- For more information about the deployment worksheet for Azure Stack Hub integrated systems, please see: Deployment worksheet - Azure Stack Hub.

Azure Stack Hub deployment worksheet BMCMgmt network

Click Apply.

Perform a health check on the new nodes

Prior to running the node expansion script, it is important to perform a quick health check of the new node(s). This also allows the iDRAC to perform an inventory collection which is needed for the firmware upgrade automation to successfully validate the new node(s).

To perform a health check on the new nodes for expansion, perform the following steps:

Steps

The below steps will be repeated for each new scale unit node to be added.

If the new node(s) are powered off, press the power button to boot the new node(s).
Allow up to 10 minutes for the new node(s) to fully load BIOS settings and complete the BIOS initialization.
Once complete, access the iDRAC web interface either via the iDRAC Direct port or by leveraging a remote desktop (RDP) connection from the Hardware Lifecycle Host (HLH).
Verify there are no alerts or warnings on the dashboard.

Navigate to System > Overview > Network Devices and verify that NIC Slot 6 shows both ports with a Link Status of Up.

Navigate to Storage > Overview > Physical Disks and verify all drives are present and healthy.

Navigate to Storage > Overview > Virtual Disks and verify a virtual disk is present.

Once complete, navigate back to the Dashboard and power off the node.

Update firmware on new scale unit nodes

This section covers updating firmware on scale unit node(s).

WARNING

To maintain the integrity of Dell Azure Stack Hub Integrated System before adding any new scale unit nodes, you must first follow the Patch and Update guide which includes Lifecycle Manager, ToR switch firmware updates, and OEM package updates.

This will ensure that any new scale unit nodes have the correct firmware and BIOS configuration applied when they are added to the cluster.

Node expansion script

The node expansion script is used to update firmware and apply BIOS configuration on the new scale unit node(s) before they are added to the Azure Stack Hub integrated system.

The script will also update the DeploymentData JSON file with the new scale unit node(s) information.

The script will not add the new scale unit node(s) to the Azure Stack Hub integrated system, see the Add scale unit node in the Azure Stack Hub administrator portal section for more information on how to add the new scale unit node(s) to the Azure Stack Hub integrated system.

Dell Integrated System for Microsoft Azure Stack Hub Lifecycle Manager contains the node expansion script, Invoke-DellAzSHubNodeExpansion.ps1. After completing the Patch and Update process, you should have the latest Lifecycle Manager available in E:\LCM.

WARNING

Ensure that the new scale unit node(s) are powered off before running the Invoke-DellAzSHubNodeExpansion.ps1 script, otherwise the script will fail.

NOTE

The factory default defined iDRAC administrator credential username is azsinstall and the password is azsinstall.

To run the node expansion script, perform the following steps:

Steps

From the HLH, open a PowerShell console window as an administrator.
Before running the node expansion script, make sure you have the following information:
- Number of nodes being added
- Factory BMC user credentials
- BMC administrator credentials
- HLH administrator credentials
Change the directory to E:\LCM
```
Set-Location -Path E:\LCM
```
Run the following command to start the expansion process. Change the “X” to the number of nodes that are being added.
```
.\Invoke-DellAzSHubNodeExpansion.ps1 -AdditionalNodeCount X
```
You will be prompted to input the BMC user, BMC administrator and HLH administrator credentials before the upgrade begins.

The automation will run the firmware update process one node at a time. Each node will take about an hour to complete.

Once the firmware update process is complete on all nodes your prompt will look as shown below. The new nodes have now been added to the DeploymentData JSON file and are ready to be added to the cluster from the Azure Stack Hub administrator portal:

(...)
VERBOSE: 20250214-225038:Invoke-FirmwarePostUpdate:Invoke-OEMFirmwarePostUpdate completed successfully.
VERBOSE: 20250214-225038:Remove-AutoLogon:Removing auto admin logon.
VERBOSE: 20250214-225038:Resume-HLHBitLocker:Importing BitLocker module.
VERBOSE: 20250214-225038:Resume-HLHBitLocker:Getting BitLocker encrypted volumes.
VERBOSE: 20250214-225039:Resume-HLHBitLocker:Restoring TPM protector on volume 'D:'.
VERBOSE: 20250214-225039:Disable-DHCPServer:Disabling DHCP server service.
VERBOSE: 20250214-225039:Invoke-OEMFirmwareBootstrap:PROGRESS - Cleanup complete.
VERBOSE: 20250214-225039:Invoke-OEMFirmwareBootstrap:PROGRESS - Invoke-OEMFirmwareBootstrap completed successfully.
Finished running Invoke-FirmwareBootstrap for sac42-S1-N08 - 10.128.164.74 with Deployment Data JSON: E:\AzureStack\DeploymentData_new_one.json
  > List of nodes in the Deployment Data JSON: 'E:\AzureStack\DeploymentData_new_one.json'.

Name         BMCIPAddress
----         ------------
sac42-S1-N01 10.128.164.67
sac42-S1-N02 10.128.164.68
sac42-S1-N03 10.128.164.69
sac42-S1-N04 10.128.164.70
sac42-S1-N05 10.128.164.71
sac42-S1-N06 10.128.164.72
sac42-S1-N07 10.128.164.73
sac42-S1-N08 10.128.164.74

(...)

  > Successfully replaced the original Deployment Data JSON with the new one.

Locate Logs

To locate the logs from the node expansion script, perform the following steps:

Steps

From the HLH, open File Explorer and navigate to the C:\MASLogs folder.
The logs that were generated from the node expansion script will have the filename: OEMFirmwareUpdate_[date]-[time].

Add scale unit node in the Azure Stack Hub administrator portal

The operation to add a scale unit node consists of two distinct phases: compute and storage.

The compute expansion process can take between 1-3 hours to complete per scale unit node. The storage expansion process can take several days to complete, depending on the size of the storage pool and the number of scale unit nodes being added.

NOTE

To perform any tasks within the Azure Stack Hub administrator portal, you must have the necessary administrator privileges to the Default Provider Subscription.

Before adding a scale unit node within the Azure Stack Hub administrator portal, ensure that you have completed all the steps below:

WARNING

While an add scale unit node operation is already in progress do not attempt any of the following operations:

Stop Azure Stack Hub
Update Azure Stack Hub
Repair/FRU scale unit node
Certificates rotation
Add another scale unit node (the previous add scale unit node operation failure is also considered in progress)

Steps

WARNING

Only one scale unit node can be added at a time during the compute expansion process. Once one scale unit node has been successfully added to the cluster, you can proceed with adding the next scale unit node.

Log into the Azure Stack Hub administrator portal as an Azure Stack Hub administrator.
Browse to All services > Region management > Scale units > [Cluster name] > Nodes.
Click the Add node button.

The Region and the Scale unit will be populated automatically. You will need to specify the BMC IP Address of the scale unit node you are adding.

Once you have entered the IP address of the new scale unit node, click Add at the bottom of the screen.

NOTE

The add node operation first adds the new scale unit node as available compute capacity and then automatically extends the storage capacity.

It will take a few minutes for the new scale unit node to be visible in the Azure Stack Hub administrator portal. The new scale unit node will be in a Adding state until the compute expansion process is complete.
Click the notifications in the upper right to check the status as shown below:

Once the scale unit node expansion compute process is complete, your notifications will show as the following:

CAUTION
After a scale unit node is added, the storage expansion process begins and can run for multiple days before it completes the expansion.

In order to check the status of the storage expansion provisioning task you can navigate to All services > Region management > Scale units. Once here, you will see the status as Configuring Storage if the storage expansion provisioning task is not yet complete. When this task is complete the status will change to Running.

NOTE

You do not need to wait for the Configuring Storage task to complete before adding the next scale unit node.

There is no impact to the running workloads while another scale unit node is being added.

5 - Patch and Update

5.1 - Patch and Update for 16G

Introduction

Microsoft Azure Stack Hub operators are faced with the enormous challenge of keeping their solution both secure and functional. They must ensure that the solution is not vulnerable to threats, external or internal, while maintaining negotiated service-level agreements.

Solution overview

As a Microsoft Azure Stack Hub systems provider, Dell Technologies is committed to ensuring that your Azure Stack Hub environment is both secure and functional. In Dell Technologies releases, you will find firmware and driver updates for both the Hardware Lifecycle Host (HLH) and the scale unit (SU) nodes that are contained in the OEM package updates. Dell Technologies delivers these updates quarterly, and you can apply them independently of Microsoft updates.

There are two other types of update packages for the Azure Stack Hub integrated systems: software updates and hotfixes.

For more information, see Update package types - Azure Stack Hub.

Audience

This patch and update guide is for Azure Stack Hub 16th-generation (16G) operators who intend to perform lifecycle operations (Patch and Update) for:

Firmware updates for the Hardware Lifecycle Host (HLH)
Operating System updates for the HLH (Windows Server 2022)
Driver updates for the HLH (Windows Server 2022)
Windows Defender Application Control (WDAC) policy updates for the HLH Operating System
Firmware updates for the Top-of-Rack (ToR) switches (S5248F-ON)
Firmware updates for the scale unit (SU) nodes
Driver updates for the scale unit nodes (Windows Server 2022)

Dell Integrated System for Microsoft Azure Stack Hub Lifecycle Manager overview

Dell Integrated System for Microsoft Azure Stack Hub Lifecycle Manager provides an automated way of upgrading HLH firmware, software, and driver components.

Lifecycle Manager will perform the following tasks:

Update firmware on the Hardware Lifecycle Host
Update drivers on the Hardware Lifecycle Host
Install Windows updates for the Hardware Lifecycle Host Operating System
Update the Windows Defender Application Control (WDAC) policy on the Hardware Lifecycle Host

NOTE

Firmware updates for the Top-of-Rack (ToR) switches are not included in the Lifecycle Manager update process and must be updated manually from the Hardware Lifecycle Host (HLH) using SCP and SSH commands. See the section Manually Updating the Switch Firmware from the Hardware Lifecycle Host (HLH) for more information.

Firmware and driver updates for scale unit (SU) nodes are not included in the Lifecycle Manager update process and must be updated manually using the Azure Stack Hub administrator portal. See the section OEM package updates for more information.

Lifecycle Manager should take between 1-2 hours to complete.

Lifecycle Manager is available for download on the Integrated System for Microsoft Azure Stack Hub 16G > Drivers & Downloads product support website.

OEM package updates

The Azure Stack Hub OEM package update contains firmware, device drivers, and hardware management tools in a specialized format used by Azure Stack Hub during initial deployment and update.

Dell Technologies is responsible for the end-to-end servicing lifecycle for the hardware-related firmware and driver update packages.

In addition, Dell Technologies will own and maintain guidance for all software and hardware on the HLH.

OEM package updates are available for download on the Integrated System for Microsoft Azure Stack Hub 16G > Drivers & Downloads product support website.

Prerequisites

Perform the following steps before proceeding with the Lifecycle Manager update process. There are some steps which are a one-time-activity and some that you must perform in every release.

Download the Lifecycle Manager zip file

To download the latest Lifecycle Manager zip file, perform the following steps:

Steps

Go to the Dell Technologies Support website at Integrated System for Microsoft Azure Stack Hub 16G > Drivers & Downloads and download the latest Lifecycle Manager zip file.
Log in to the HLH with the HLHAdmin default administrator account or a customer specified administrative user account.
- The HLH can be accessed via Remote Desktop Protocol (RDP) from a Permitted Network or directly via the iDRAC Direct port (USB to Micro-USB) connection.
  - See Permitted Networks - Azure Stack Hub for additional details.
On the HLH, navigate to the E:\ drive and create a folder named Temp.
Download the Lifecycle Manager zip file to the HLH E:\Temp directory.

Download the OEM Update Package zip file

To download the corresponding OEM package update zip file, perform the following steps:

Steps

Go to the Dell Technologies Support website at Integrated System for Microsoft Azure Stack Hub 16G > Drivers & Downloads and download the latest OEM package update zip file.

WARNING

The Lifecycle Manager zip file version must match the version of the OEM package zip file, otherwise the Lifecycle Manager will not pass the pre-checks.

For example, if the Lifecycle Manager zip file is 2502, then the OEM package zip file must also be 2502.
Log in to the HLH with the HLHAdmin default administrator account or a customer specified administrative user account.
- The HLH can be accessed via Remote Desktop Protocol (RDP) from a Permitted Network or directly via the iDRAC Direct port (USB to Micro-USB) connection.
  - See Permitted Networks - Azure Stack Hub for additional details.
Download the OEM package update zip file to the HLH E:\Temp directory.

Extract Lifecycle Manager and OEM package update zip files

Lifecycle Manager zip and OEM package update zip files that were downloaded to the HLH from the Dell support website will need to be extracted into their own directories.

To extract Lifecycle Manager and OEM package update zip files, perform the following steps:

Steps

Before beginning the extraction process, first the files in the E:\Temp directory will need to be unblocked. Open a PowerShell terminal as administrator and type the following command:
```
Get-ChildItem -Path "E:\Temp" -Recurse | Unblock-File
```
WARNING
Lifecycle Manager zip file contents must be unblocked; otherwise, the Lifecycle Manager will not pass the pre-checks.
Once the contents within the E:\Temp directory have been unblocked, you can begin to extract the zip files into their directories.
On the HLH, navigate to the E:\ drive and create a folder named LCM.
On the HLH, navigate to the E:\ drive and create a folder named OEM.

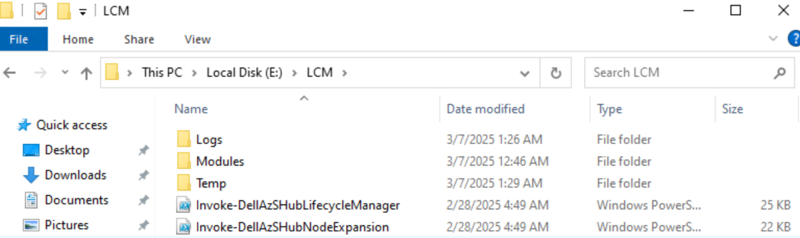

Extract the Lifecycle Manager zip file from the E:\Temp directory to the E:\LCM directory.

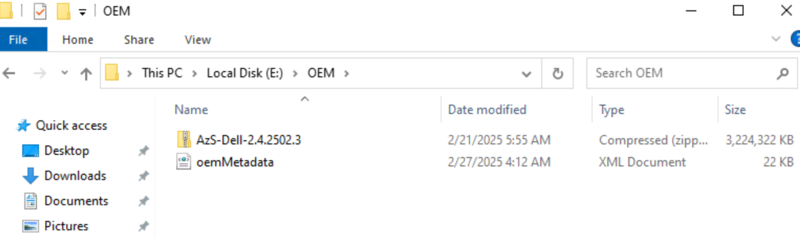

Extract the OEM package update zip file from the E:\Temp directory to the E:\OEM directory.

Hardware Lifecycle Host (HLH)

Running Lifecycle Manager

NOTE

Lifecycle Manager will reboot the HLH multiple times during the upgrade process. You will need to log back into the HLH manually after each reboot; otherwise, the upgrade will not continue until you do.

As an optional step you can enable the Auto Logon feature on the HLH. This will allow the HLH to automatically log back in after each reboot.

For more information on how to enable the Auto Logon feature, see Turn on automatic logon in Windows.

To run Lifecycle Manager on the HLH, perform the following steps:

Steps

WARNING

Never use PowerShell ISE at any time during the use of this document.

From the HLH, open a PowerShell console window as an administrator.

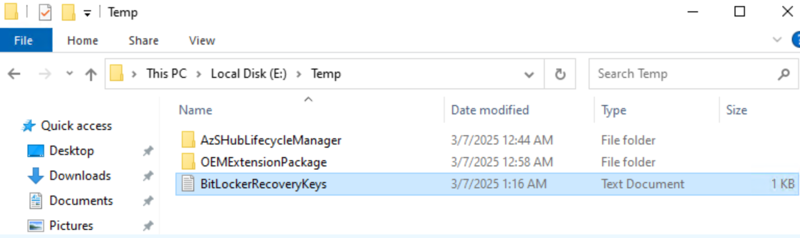

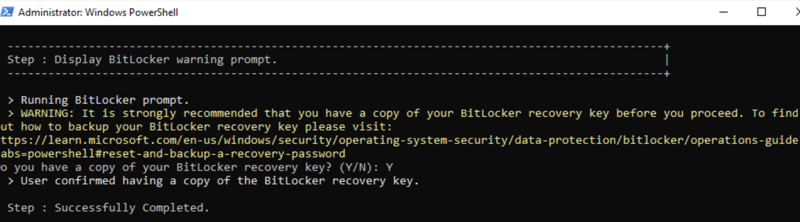

You will need to export the BitLocker recovery keys before proceeding with the upgrade. Type the command below into your PowerShell prompt to export your BitLocker recovery keys.
```
(Get-BitLockerVolume -MountPoint D, E).KeyProtector | Where-Object -FilterScript {$_.KeyProtectorType -eq 'RecoveryPassword'} | Select-Object -Property KeyProtectorId,RecoveryPassword | Out-File -FilePath "E:\Temp\BitLockerRecoveryKeys.txt"
```
CAUTION

Once the BitLocker recovery keys have been exported into the E:\Temp folder, ensure they are moved to a secure location outside of the HLH.

Failure to do so may result in an inaccessible HLH due to firmware or hardware issues during the firmware upgrade process.

For more information see BitLocker Operations Guide.

Change the current directory to the E:\LCM location that the Lifecycle Manager zip file was extracted to in a previous step:
```
Set-Location -Path "E:\LCM"
```
Run Lifecycle Manager by using the following command:
```
.\Invoke-DellAzSHubLifecyclemanager.ps1 -OEMPackagePath "E:\OEM\AzS-Dell-<version>.zip"
```
You will be prompted to provide credentials for the following endpoints:
- Hardware Lifecycle Host OS administrative account credential
- iDRAC administrative account credential for the Hardware Lifecycle Host
You will then be prompted to confirm that you have backed up the BitLocker recovery keys. Press Y to confirm if you have backed up the BitLocker recovery keys; otherwise, press N to cancel the update process and back up your BitLocker recovery keys.

Once the update process begins, continue to monitor Lifecycle Manager while it runs. While the automation is running there will be multiple reboots, in order to keep the upgrade process progressing you must log back into the HLH manually; otherwise, the upgrade will not continue until you do.

Some updates are grouped together to limit the amount of reboots. The HLH may reboot for any of the following reasons:

Update Type	Reboot Type
Firmware updates	Separate reboot
Driver updates	Grouped reboot
Operating System updates	Grouped reboot
Windows Defender Application Control (WDAC) policy updates	Grouped reboot

Upon completion, the output should look similar to the image shown below. This shows a list of all completed tasks from Lifecycle Manager, as well as the total elapsed time of the upgrade.

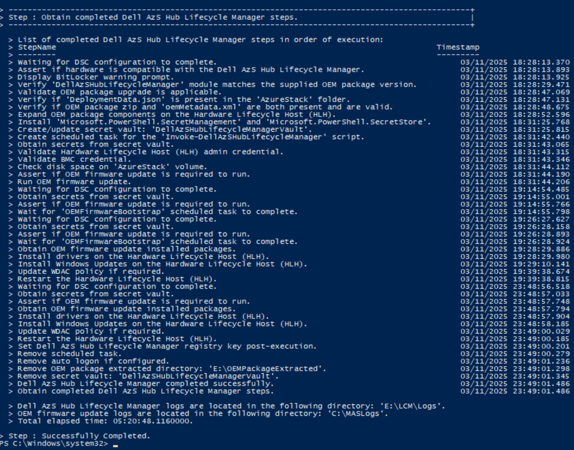

If the upgrade was successful, you will see the Dell AzS Hub Lifecycle Manager completed successfully message in the output.

Finally, you can gather logs by navigating to the directory E:\LCM\Logs on the HLH. These logs can be used for troubleshooting purposes if needed.

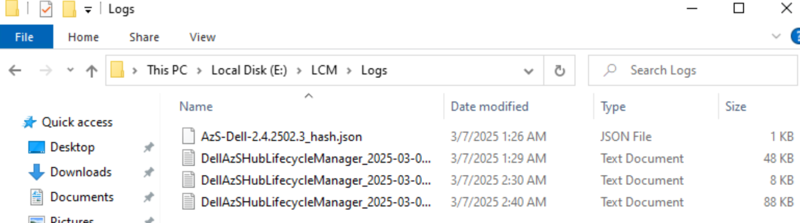

- Additionally, C:\MASLogs will contain logs related to the firmware update process.

Top-of-Rack (ToR) Switches

Manually Updating the Switch Firmware from the Hardware Lifecycle Host (HLH)

You must manually install the OS10 software image from the HLH using SCP and SSH commands.

WARNING

To maintain the integrity of Dell Azure Stack Hub Integrated System, it is required to perform the switch firmware update in conjunction with the Lifecycle Manager update process.

To update switch firmware, perform the following steps:

Steps

WARNING

Never use PowerShell ISE at any time during the use of this document.

From the HLH, open a PowerShell console window as an administrator.
- The HLH can be accessed via Remote Desktop Protocol (RDP) from a Permitted Network.

Change directory to E:\OEM\AzS-Dell-<version>\Firmware\Switches\msftdell

Set-Location -Path "E:\OEM\AzS-Dell-<version>\Firmware\Switches\msftdell"

Run the following command to copy the switch firmware from the extracted OEM package update zip file on the HLH to the ToR switches.

For example, if upgrading the firmware on ToR-1 with an IP address of 10.128.164.98 and a switch administrative user account of azsadmin-gtbzp, you would run the following:
```
scp -o MACs=hmac-sha2-512 .\PKGS_OS10-Enterprise-<version>-installer-x86_64.bin azsadmin-gtbzp@10.128.164.98:
```
Repeat the above step for ToR-2.

For example, if upgrading the firmware on ToR-2 with an IP address of 10.128.164.99 and a switch administrative user account of azsadmin-gtbzp, you would run the following:
```
scp -o MACs=hmac-sha2-512 .\PKGS_OS10-Enterprise-<version>-installer-x86_64.bin azsadmin-gtbzp@10.128.164.99:
```

The below steps will be repeated on each ToR switch (e.g. ToR-1 and ToR-2) ONLY after fully completing the first switch (e.g. ToR-1).

Run the following commands to connect to the ToR switch.

For example, if upgrading the firmware on ToR-1 with an IP address of 10.128.164.98 and a switch administrative user account of azsadmin-gtbzp, you would run the following:
```
ssh -o MACs=hmac-sha2-512 azsadmin-gtbzp@10.128.164.98
```
- Enter the password of the switch administrative user account when prompted.
Run the following command to move the SCP copied firmware file to its intended destination (/var/os10-image):
```
system "sudo mv ./PKGS_OS10-Enterprise-<version>-installer-x86_64.bin /var/os10-image"
```
- Enter the password of the switch administrative user account when prompted.

Verify the image is now located in the image directory.

dir image

The output should look similar to the below example:

Directory contents for folder:
Date (modified)        Size (bytes)  Name
---------------------  ------------  ------------------------------------------
2025-03-18T18:37:56+00:667040481     PKGS_OS10-Enterprise-<version>-installer-x86_64.bin

To verify that an installation is not already in progress, run the following command:

show image status

The output should look similar to the below example:

Image Upgrade State:     idle
==================================================
File Transfer State:     idle
--------------------------------------------------
  State Detail:          No download information available
  Task Start:            -001-11-30T00:00:00+00:00
  Task End:              -001-11-30T00:00:00+00:00
  Transfer Progress:     0 %
  Transfer Bytes:        0 bytes
  File Size:             0 bytes
  Transfer Rate:         0 kbps

Installation State:      idle
--------------------------------------------------
  State Detail:          No install information available
  Task Start:            -001-11-30T00:00:00+00:00
  Task End:              -001-11-30T00:00:00+00:00

Run the following command to install the downloaded image to the standby partition:
```
image install image://PKGS_OS10-Enterprise-<version>-installer-x86_64.bin
```

To view the image install progress, run the following command:

show image status

The output should look similar to the below example:

Image Upgrade State:     idle
==================================================
File Transfer State:     idle
--------------------------------------------------
  State Detail:          No download information available
  Task Start:            0000-00-00T00:00:00Z
  Task End:              0000-00-00T00:00:00Z
  Transfer Progress:     0 %
  Transfer Bytes:        0 bytes
  File Size:             0 bytes
  Transfer Rate:         0 kbps

Installation State:      install
--------------------------------------------------
  State Detail:          In progress: Configure filesystem (3 of 9)
  Task Start:            2025-03-17T21:15:16Z
  Task End:              0000-00-00T00:00:00Z

Keep checking until the image installation is complete. Then check to verify if the image is installed to the standby partition by running the following command:

show boot

The output should look similar to the below example:

Current system image information:
===================================
Type      Boot Type      Active                   Standby                 Next-Boot
-----------------------------------------------------------------------------------
Node-id 1 Flash Boot     [B] 10.5.6.5            [A] 10.6.0.1            [B] active

Set the next boot partition to the standby partition where the downloaded image is installed by running the following command:
```
boot system standby
```
Save the currently running configuration and then reload to the configured image by running the following commands:
```
write memory
reload
```
After the switch reloads, copy the new active image to the standby boot partition by running the following command:
```
image copy active-to-standby
```

Verify the status of the BGP connections on the switches by running the following command:

show ip bgp summary

Verify that BGP is established for all neighbors as indicated by the Up/Down column showing a connection timer. The output should look similar to the below example:

BGP router identifier 10.128.164.24 local AS number 64910
Neighbor                                      AS          MsgRcvd     MsgSent     Up/Down           State/Pfx
10.128.165.12                                 64912       11          12          00:07:01          25
10.128.165.13                                 64912       11          12          00:07:01          25
10.128.165.33                                 64912       10          10          00:07:01          25
10.128.164.1                                  64900       11          12          00:07:06          1
10.128.164.9                                  64900       11          12          00:07:06          1
10.128.164.30                                 64910       12          14          00:06:23          8
10.128.164.34                                 64910       12          14          00:07:06          8

Verify that the switch firmware version was updated by running the following command:

show version

The output should look similar to the below example:

Dell SmartFabric OS10 Enterprise
Copyright (c) 1999-2024 by Dell Inc. All Rights Reserved.
OS Version: 10.6.0.1
Build Version: 10.6.0.1.35
Build Time: 2024-12-02T17:55:39+0000
System Type: S5248F-ON
Architecture: x86_64
Up Time: 1 day 00:11:14

Original Equipment Manufacturer (OEM) package updates

Servicing Policy

Updates for the hardware components in the form of driver updates, firmware updates, and security patches are provided by Dell Technologies. These updates are referred to as OEM package updates. It is recommended to be within N-2 of the current available OEM package for Azure Stack Hub.

WARNING

Azure Stack Hub OEM package updates must be installed in sequential order.

It is not supported to skip an OEM package update version.

Identify the OEM version applied to the Azure Stack Hub

To identify the version of the Original Equipment Manufacturer (OEM) package currently applied to the Azure Stack Hub, perform the following steps:

Steps

Open the Azure Stack Hub administrator portal.
Open the Microsoft Azure Stack Hub - Administration Dashboard and click Dashboard.

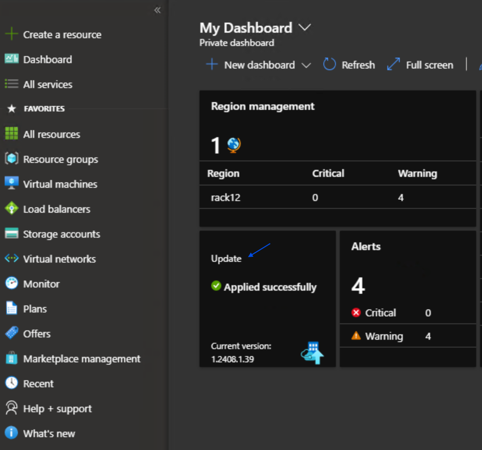

Click Update.

The Updates blade will appear as shown below. The Updates blade displays your current Azure Stack Hub version and the latest deployed version of the OEM package update.

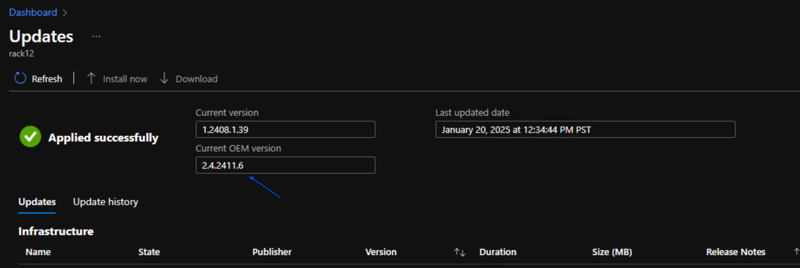

Import and Install an OEM package update

In this step you will be uploading and installing the OEM package update utilizing the Azure Stack Hub administrator portal.

CAUTION

Before you apply an OEM package update, always apply the latest Azure Stack Hub hotfix available for your Azure Stack Hub system.

For additional information about Azure Stack Hub updates, please see:

Steps

Access the Azure Stack Hub administrator portal of the system you wish to perform the OEM package update on.
Navigate to Storage accounts > updateadminaccount > Containers.

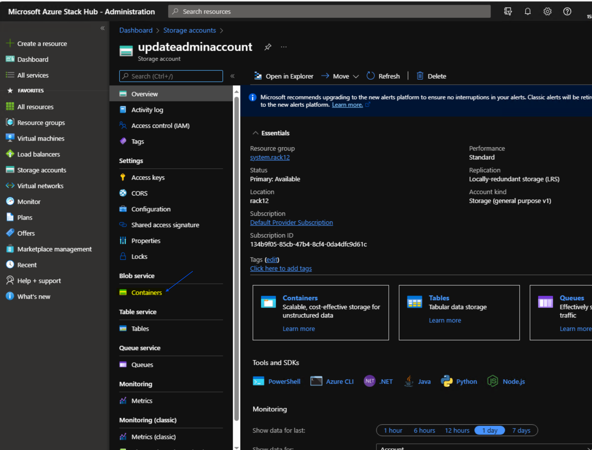

Create a container for the OEM package update by clicking +Container.
In the Name field on the right navigation pane enter the name for your container e.g. 2408oemupdate and then click Create.

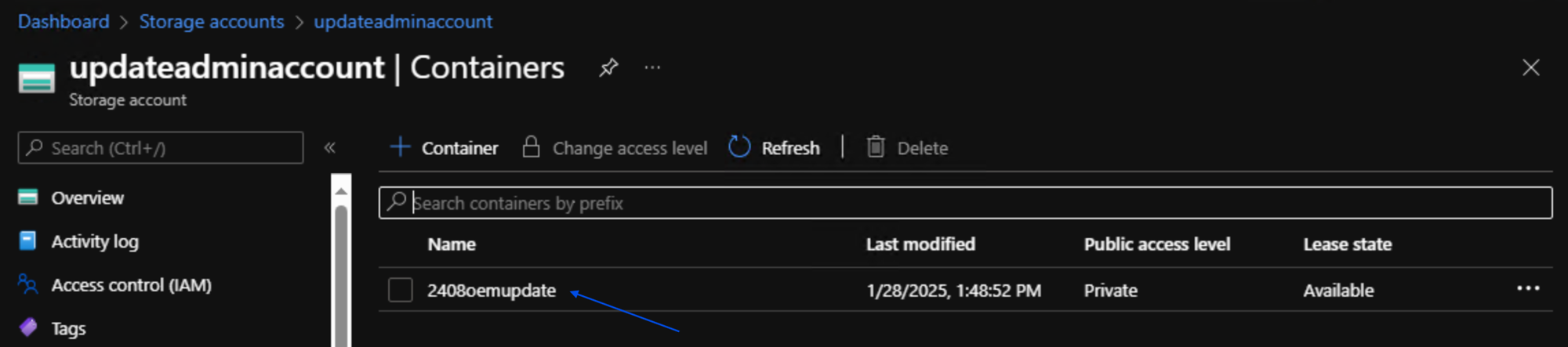

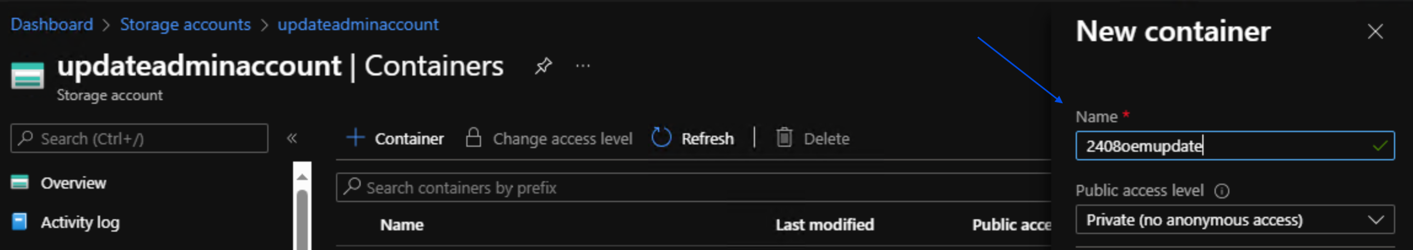

Once the container is created, click the name of the container to access it.

Once you have clicked on the container click Upload at the top of the page.

Dell OEM package updates are in a zip format. The zip file contains the oemMetadata.xml file and the OEM package update payload. You will need to upload both the zip file for the OEM package update and the oemMetadata.xml that is associated with it.

Once uploaded to the storage account container, they should appear in the container that was created in step 3.
Navigate back to the Dashboard and then click the Update tile.

The Updates blade should now show an available OEM package update that can be installed.
Click the update and then click Install to install the OEM package update.
After clicking install on the OEM package update, the update run details can be seen by clicking on the update in the Updates menu once the update has entered into a Preparing or Installing state.

Once completed, Updates blade should display Applied successfully and in the Update history menu the update state should be marked as Installed.

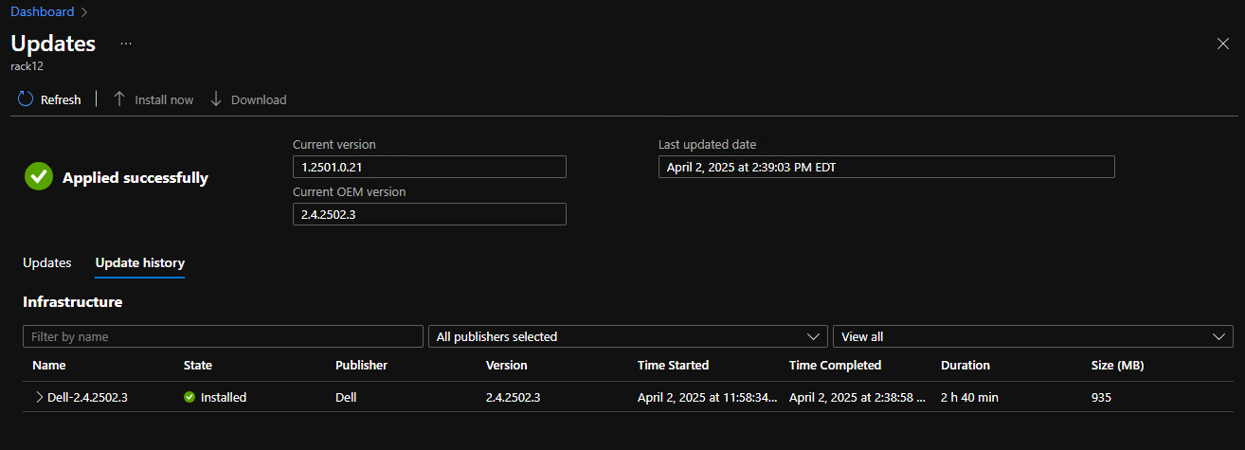

If the update fails, the Update blade reports Needs attention. Click on the failed update and use the Download summary button to get a high-level status of where the update failed.

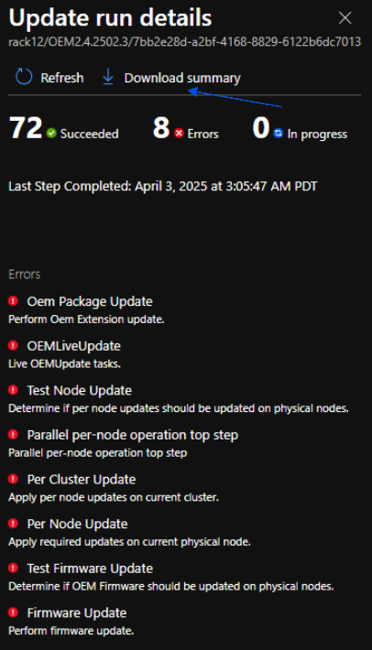

6 - How To

6.1 - How to create a service principal name for Azure Stack Hub integrated with Active Directory Federation Services identity using PowerShell

Overview

This article explains how to create a service principal name (SPN) to manage Azure Stack Hub integrated with Active Directory Federation Services (AD FS) identity using PowerShell.

For more information about this process, visit Give an app access to Azure Stack Hub resources.

It will guide you through the creation of:

An AD FS application and the associated service principal object which represents the application’s identity within the Active Directory
Role assignment

Prerequisites

Prerequisites from a Windows-based external client are:

PowerShell 7.x and the Azure Stack Hub compatible PowerShell modules
- Install PowerShell Az module for Azure Stack Hub
Active Directory Federation Services identity integrated with Azure Stack Hub deployment

Overview of the creation process for Azure Stack Hub SPN

NOTE

The procedure provided is designed for Azure Stack Hub Operators as it requires Privileged Endpoint (PEP) access as well as assumes the Default Provider Subscription and the Administrator Azure Resource Manager endpoint as the defaults; however, the same mechanism can be applied to the User Subscriptions with minimal changes to the code.

If you want to assign a role the SPN for a User Subscription, replace the Administrator Azure Resource Manager endpoint with the Tenant Azure Resource Manager endpoint and the Default Provider Subscription with Subscription Name you want to modify.

Declare your variables accordingly.
Log in to your Azure Stack Hub Default Provider Subscription with administrator user credentials (needs to have the Owner role).

CAUTION

This requires interactive prompt as by default when using AD FS as your identity provider you cannot use user credentials in the non-interactive way.

This is the main reason why you would want to create an SPN so that you can automate your operations.
Create your AD FS application/service principal.
Assign the appropriate Role to your service principal.

NOTE

As a bonus, we include an example of how to assign the Owner role to an AD FS group

The current AzureStack modules do not support it natively, but this example will show you how to do it via API.

It is the preferred method of assigning roles, you should assign roles to a group rather than individual users.

Log in to your Azure Stack Hub Default Provider Subscription using the SPN account.
Verify SPN authentication and the role assignment.

Create Azure Stack Hub SPN

Create a PFX Certificate

#region Declare variables

$CertificateName = "ADFSAutomationCert"

$CertStore = "cert:\LocalMachine\My" # This can also be "cert:\CurrentUser\My" but in general service accounts cannot access CurrentUser cert store

$CertSubject = "CN=$CertificateName"

$PfxFilePath = "C:\Temp"

if (-not (Test-Path -Path $PfxFilePath)) {

    New-Item -ItemType Directory -Path $PfxFilePath -Force | Out-Null

}

$PfxFilePathFull = Join-Path -Path $PfxFilePath -ChildPath "$($CertificateName).pfx"

$PfxPassword = '""' | ConvertTo-SecureString -AsPlainText -Force # replace "" with an actual password or leave "" for it to be blank

#endregion

#region Create certificate to pass into new Application

$ExpiryDate = (Get-Date).AddDays(365) # You can change this to whatever fits your security profile better, default is 1 year

$Cert = New-SelfSignedCertificate -CertStoreLocation $CertStore -Subject $CertSubject -KeySpec KeyExchange -NotAfter $ExpiryDate

Write-Verbose -Message "Certificate ""$($Cert.Subject)"" with start date ""$($Cert.NotBefore)"" and end date ""$($Cert.NotAfter)"" created at ""$($PfxFilePathFull)""."

#endregion

#region Get a cert object from a .pfx file - you need it to create the SPN to begin with

$Cert = Get-PfxCertificate -FilePath $PfxFilePathFull -Password $PfxPassword

#endregion

#region Optional steps

#region Export the certificate so that you can import it on other environments

try {

    Export-PfxCertificate -Cert $Cert.PsPath -FilePath $PfxFilePathFull -Password $PfxPassword -ErrorAction Stop | Out-Null

} catch {

    throw "Failed to export certificate to ""$($PfxFilePathFull)"":`n$($_.Exception.Message)"

}

#endregion

#region Import the certificate into the certificate store on another environment

Import-PfxCertificate -CertStoreLocation $CertStore -FilePath $PfxFilePathFull -Password $PfxPassword -Exportable

#endregion

#endregion

Create Azure Stack Hub SPN that uses certificate credential

#region Declare variables

$CertificateName = "ADFSAutomationCert"

$PfxFilePath = "C:\Temp"

$PfxFilePathFull = Join-Path -Path $PfxFilePath -ChildPath "$($CertificateName).pfx"

$PfxPassword = '""' | ConvertTo-SecureString -AsPlainText -Force

$CertificateObject = Get-PfxCertificate -FilePath $PfxFilePathFull -Password $PfxPassword

$CertificateThumbprint = $CertificateObject.Thumbprint

if (!$CertificateThumbprint) {

    throw "Failed to obtain a thumbprint from certificate: $($PfxFilePathFull)"

}

$CloudAdminUsername = "CloudAdmin@azurestack.local"

[SecureString]$CloudAdminPassword = ConvertTo-SecureString "Password123!" -AsPlainText -Force

$ApplicationName = "ADFSAppCert"

$AzureStackRole = "Owner"

$ADGroupName = "AzureStackHubOwners"

$AzureStackAdminArmEndpoint = "https://adminmanagement.local.azurestack.external/"

$EnvironmentName = "AzureStackAdmin"

$PepCreds = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $CloudAdminUsername, $CloudAdminPassword

$PepIPAddress = "x.x.x.224" # e.g. 10.5.30.224

#endregion

#region Register and set an Az environment that targets your Azure Stack Hub instance

Write-Output -InputObject "Connecting to Azure Stack Hub Admin Management Endpoint - $(AzureStackAdminArmEndpoint)"

$null = Add-AzEnvironment -Name $EnvironmentName -ARMEndpoint $AzureStackAdminArmEndpoint

$null = Connect-AzAccount -Environment $EnvironmentName -UseDeviceAuthentication # Interactive prompt

if (((Get-AzContext).Subscription).Name -notlike "Default Provider Subscription") {

    throw "Failed to obtain access to the 'Default Provider Subscription'. Please verify the user has been assigned the '$($AzureStackRole)' role for the 'Default Provider Subscription'."

}

#endregion

#region Create a PSSession to the Privileged Endpoint VM

Write-Output -InputObject "Create a PowerShell Session to the Privileged Endpoint VM"

$PepSession = New-PSSession -ComputerName $PepIPAddress -ConfigurationName PrivilegedEndpoint -Credential $PepCreds -SessionOption (New-PSSessionOption -Culture en-US -UICulture en-US)

#endregion

#region Check for existing SPN

Write-Output -InputObject "Check for existing SPN '$($ApplicationName)'"

$SPNObjectCheckJob = Invoke-Command -Session $PepSession -ScriptBlock { Get-GraphApplication } -AsJob | Wait-Job

if ($SPNObjectCheckJob.State -ne "Completed") {

    throw "$($SPNObjectCheckJob.ChildJobs | Receive-Job)"

}

$SPNObjectCheck = $SPNObjectCheckJob.ChildJobs.Output | Where-Object { $_.Name -like "Azurestack-$ApplicationName*" } | Select-Object -Last 1

#endregion

#region Create new SPN if one does not exist

if ($SPNObjectCheck) {

    Write-Output -InputObject "SPN details`n$($ApplicationName): $($SPNObjectCheck | Out-String)"

} else {

    Write-Output -InputObject "No existing SPN found"

    Write-Output -InputObject "Create new SPN '$($ApplicationName)'"

    $SPNObjectJob = Invoke-Command -Session $PepSession -ScriptBlock { New-GraphApplication -Name $using:ApplicationName -ClientCertificates $using:CertificateObject } -AsJob | Wait-Job

    if ($SPNObjectJob.State -ne "Completed") {

        throw "$($SPNObjectJob.ChildJobs | Receive-Job)"

    }

    $SPNObject = $SPNObjectJob.ChildJobs.Output

    Write-Output -InputObject "SPN details`n$($ApplicationName): $($SPNObject | Out-String)"

    $FullApplicationName = $SPNObject.ApplicationName

    #endregion

}

#region Assign SPN the 'Owner' role for the 'Default Provider Subscription'

Write-Output -InputObject "Assign SPN '$($ApplicationName)' the '$($AzureStackRole)' role for the 'Default Provider Subscription'"

if ($FullApplicationName) {

    $SPNADFSApp = Get-AzADServicePrincipal | Where-Object { $_.DisplayName -like "$($FullApplicationName)" }

} else {

    $SPNADFSApp = Get-AzADServicePrincipal | Where-Object { $_.DisplayName -like "*$($ApplicationName)*" } | Select-Object -Last 1

}

$SPNRoleAssignmentCheck = Get-AzRoleAssignment -ObjectId $SPNADFSApp.AdfsId

if (!($SPNRoleAssignmentCheck) -or ($SPNRoleAssignmentCheck.RoleDefinitionName -ne $AzureStackRole)) {

    $null = New-AzRoleAssignment -RoleDefinitionName $AzureStackRole -ServicePrincipalName $SPNADFSApp.ApplicationId.Guid

    #region Verify SPN has been assigned the 'Owner' role for the 'Default Provider Subscription'

    $SPNRoleAssignment = Get-AzRoleAssignment -ObjectId $SPNADFSApp.AdfsId

    if (!($SPNRoleAssignment) -or ($SPNRoleAssignment.RoleDefinitionName -ne $AzureStackRole)) {

        throw "Failed to assign SPN '$($ApplicationName)' the '$($AzureStackRole)' role for the Default Provider Subscription"

    }

    #endregion

}

#endregion

#region Assign AD group 'AzureStackOwners' the 'Owner' role for the 'Default Provider Subscription'

Write-Output -InputObject "Assign AD group '$($ADGroupName)' the '$($AzureStackRole)' role for the 'Default Provider Subscription'"

$ADGroup = Get-AzADGroup -DisplayNameStartsWith $ADGroupName

$SubId = (Get-AzSubscription -SubscriptionName "Default Provider Subscription").Id

$OwnerRoleId = (Get-AzRoleDefinition -Name $AzureStackRole).Id

$APIPayloadHash = @{

    "properties" = @{

        "roleDefinitionId" = "/subscriptions/$($SubId)/providers/Microsoft.Authorization/roleDefinitions/$($OwnerRoleId)"
        "principalId"      = "$($ADGroup.AdfsId)"

    }

} | ConvertTo-Json -Depth 50

$APIPath = "/subscriptions/$($SubId)/providers/Microsoft.Authorization/roleAssignments/$($OwnerRoleId)?api-version=2015-07-01"

$APIResponse = Invoke-AzRestMethod -Path $APIPath -Method "PUT" -Payload $APIPayloadHash

if ($APIResponse.StatusCode -ne "201") {

    throw "Failed to create role assignment for ""$($ADGroup.DisplayName)"" in subscription ""$($SubId)"" with role ""$($AzureStackRole)"" and role ID ""$($OwnerRoleId)"""

}

#endregion

#region Verify AD group 'AzureStackOwners' has been assigned the 'Owner' role for the 'Default Provider Subscription'

$ADGroupRoleAssignment = Get-AzRoleAssignment -ObjectId $ADGroup.AdfsId

if (!($ADGroupRoleAssignment) -or ($ADGroupRoleAssignment.RoleDefinitionName -ne $AzureStackRole)) {

    throw "Failed to assign AD group '$($ADGroupName)' the '$($AzureStackRole)' role for the 'Default Provider Subscription'"

}

#endregion

#region Obtain authentication information

# GUID of the directory tenant
$TenantId = (Get-AzContext).Tenant.Id

Write-Output -InputObject "TenantId: $($TenantId)"
Write-Output -InputObject ""
Write-Output -InputObject "ApplicationName: $($SPNADFSApp.DisplayName)"
Write-Output -InputObject ""
Write-Output -InputObject "ApplicationId: $($SPNADFSApp.ApplicationId.Guid)"
Write-Output -InputObject ""
Write-Output -InputObject "CertificateThumbprint: $($CertificateThumbprint)"
Write-Output -InputObject ""
Write-Output -InputObject "Admin ARM Endpoint: $($AzureStackAdminArmEndpoint)"

#endregion

#region Verify if SPN can authenticate to Azure Stack Hub Admin Management Endpoint

Write-Output -InputObject "Verify if SPN can authenticate to Azure Stack Hub Admin Management Endpoint"

$null = Clear-AzContext -Force

$null = Connect-AzAccount -Environment $EnvironmentName -ServicePrincipal -Tenant $TenantId -ApplicationId $SPNADFSApp.ApplicationId.Guid -CertificateThumbprint $CertificateThumbprint

if (((Get-AzContext).Subscription).Name -notlike "Default Provider Subscription") {

    throw "Failed to obtain access to the 'Default Provider Subscription'. Please verify the SPN has been assigned the '$($AzureStackRole)' role for the 'Default Provider Subscription'."

} else {

    Write-Output -InputObject "Your SPN can successfully authenticate with ARM Endpoint $($AzureStackAdminArmEndpoint) and has got access to the 'Default Provider Subscription'"

}

#endregion

#region Remove sessions

if ($PepSession) {

    Write-Output -InputObject "Removing PSSSession to the Privileged Endpoint"

    Remove-PSSession -Session $PepSession

}

$CheckContext = Get-AzContext | Where-Object { $_.Environment -like $EnvironmentName }

if ($CheckContext) {

    Write-Output -InputObject "Disconnecting from AzS Hub Admin Management Endpoint: $($CheckContext.Environment.ResourceManagerUrl)"

    $null = Disconnect-AzAccount

}

#endregion

CAUTION

Using a client secret is less secure than using an X509 certificate credential. Not only is the authentication mechanism less secure, but it also typically requires embedding the secret in the client app source code. As such, for production apps, you’re strongly encouraged to use a certificate credential.

#region Declare variables

$CloudAdminUsername = "CloudAdmin@azurestack.local"

[SecureString]$CloudAdminPassword = ConvertTo-SecureString "Password123!" -AsPlainText -Force

$ApplicationName = "ADFSAppCert"

$AzureStackRole = "Owner"

$ADGroupName = "AzureStackHubOwners"

$AzureStackAdminArmEndpoint = "https://adminmanagement.local.azurestack.external/"

$EnvironmentName = "AzureStackAdmin"

$PepCreds = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $CloudAdminUsername, $CloudAdminPassword

$PepIPAddress = "x.x.x.224" # e.g. 10.5.30.224

#endregion

#region Register and set an Az environment that targets your Azure Stack Hub instance

Write-Output -InputObject "Connecting to Azure Stack Hub Admin Management Endpoint - $(AzureStackAdminArmEndpoint)"

$null = Add-AzEnvironment -Name $EnvironmentName -ARMEndpoint $AzureStackAdminArmEndpoint

$null = Connect-AzAccount -Environment $EnvironmentName -UseDeviceAuthentication # Interactive prompt

if (((Get-AzContext).Subscription).Name -notlike "Default Provider Subscription") {

    throw "Failed to obtain access to the 'Default Provider Subscription'. Please verify the user has been assigned the '$($AzureStackRole)' role for the 'Default Provider Subscription'."

}

#endregion

#region Create a PSSession to the Privileged Endpoint VM

Write-Output -InputObject "Create a PowerShell Session to the Privileged Endpoint VM"

$PepSession = New-PSSession -ComputerName $PepIPAddress -ConfigurationName PrivilegedEndpoint -Credential $PepCreds -SessionOption (New-PSSessionOption -Culture en-US -UICulture en-US)

#endregion

#region Check for existing SPN

Write-Output -InputObject "Check for existing SPN '$($ApplicationName)'"

$SPNObjectCheckJob = Invoke-Command -Session $PepSession -ScriptBlock { Get-GraphApplication } -AsJob | Wait-Job

if ($SPNObjectCheckJob.State -ne "Completed") {

    throw "$($SPNObjectCheckJob.ChildJobs | Receive-Job)"

}

$SPNObjectCheck = $SPNObjectCheckJob.ChildJobs.Output | Where-Object { $_.Name -like "Azurestack-$ApplicationName*" } | Select-Object -Last 1

#endregion

#region Create new SPN if one does not exist

if ($SPNObjectCheck) {

    Write-Output -InputObject "SPN details`n$($ApplicationName): $($SPNObjectCheck | Out-String)"

} else {

    Write-Output -InputObject "No existing SPN found"

    Write-Output -InputObject "Create new SPN '$($ApplicationName)'"

    $SPNObjectJob = Invoke-Command -Session $PepSession -ScriptBlock { New-GraphApplication -Name $using:ApplicationName -GenerateClientSecret } -AsJob | Wait-Job

    if ($SPNObjectJob.State -ne "Completed") {

        throw "$($SPNObjectJob.ChildJobs | Receive-Job)"

    }

    $SPNObject = $SPNObjectJob.ChildJobs.Output

    Write-Output -InputObject "SPN details`n$($ApplicationName): $($SPNObject | Out-String)"

    $FullApplicationName = $SPNObject.ApplicationName

    $SPNClientId = $SPNObject.ClientId

    $SPNClientSecret = $SPNObject.ClientSecret | ConvertTo-SecureString -AsPlainText -Force

    $SPNCreds = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $SPNClientId, $SPNClientSecret

    #endregion

}

#region Assign SPN the 'Owner' role for the 'Default Provider Subscription'

Write-Output -InputObject "Assign SPN '$($ApplicationName)' the '$($AzureStackRole)' role for the 'Default Provider Subscription'"

if ($FullApplicationName) {

    $SPNADFSApp = Get-AzADServicePrincipal | Where-Object { $_.DisplayName -like "$($FullApplicationName)" }

} else {

    $SPNADFSApp = Get-AzADServicePrincipal | Where-Object { $_.DisplayName -like "*$($ApplicationName)*" } | Select-Object -Last 1

}

$SPNRoleAssignmentCheck = Get-AzRoleAssignment -ObjectId $SPNADFSApp.AdfsId

if (!($SPNRoleAssignmentCheck) -or ($SPNRoleAssignmentCheck.RoleDefinitionName -ne $AzureStackRole)) {

    $null = New-AzRoleAssignment -RoleDefinitionName $AzureStackRole -ServicePrincipalName $SPNADFSApp.ApplicationId.Guid

    #region Verify SPN has been assigned the 'Owner' role for the 'Default Provider Subscription'

    $SPNRoleAssignment = Get-AzRoleAssignment -ObjectId $SPNADFSApp.AdfsId

    if (!($SPNRoleAssignment) -or ($SPNRoleAssignment.RoleDefinitionName -ne $AzureStackRole)) {

        throw "Failed to assign SPN '$($ApplicationName)' the '$($AzureStackRole)' role for the Default Provider Subscription"

    }

    #endregion

}

#endregion

#region Assign AD group 'AzureStackOwners' the 'Owner' role for the 'Default Provider Subscription'

Write-Output -InputObject "Assign AD group '$($ADGroupName)' the '$($AzureStackRole)' role for the 'Default Provider Subscription'"

$ADGroup = Get-AzADGroup -DisplayNameStartsWith $ADGroupName

$SubId = (Get-AzSubscription -SubscriptionName "Default Provider Subscription").Id

$OwnerRoleId = (Get-AzRoleDefinition -Name $AzureStackRole).Id

$APIPayloadHash = @{

    "properties" = @{

        "roleDefinitionId" = "/subscriptions/$($SubId)/providers/Microsoft.Authorization/roleDefinitions/$($OwnerRoleId)"
        "principalId"      = "$($ADGroup.AdfsId)"

    }

} | ConvertTo-Json -Depth 50

$APIPath = "/subscriptions/$($SubId)/providers/Microsoft.Authorization/roleAssignments/$($OwnerRoleId)?api-version=2015-07-01"

$APIResponse = Invoke-AzRestMethod -Path $APIPath -Method "PUT" -Payload $APIPayloadHash

if ($APIResponse.StatusCode -ne "201") {

    throw "Failed to create role assignment for ""$($ADGroup.DisplayName)"" in subscription ""$($SubId)"" with role ""$($AzureStackRole)"" and role ID ""$($OwnerRoleId)"""

}

#endregion

#region Verify AD group 'AzureStackOwners' has been assigned the 'Owner' role for the 'Default Provider Subscription'

$ADGroupRoleAssignment = Get-AzRoleAssignment -ObjectId $ADGroup.AdfsId

if (!($ADGroupRoleAssignment) -or ($ADGroupRoleAssignment.RoleDefinitionName -ne $AzureStackRole)) {

    throw "Failed to assign AD group '$($ADGroupName)' the '$($AzureStackRole)' role for the 'Default Provider Subscription'"

}

#endregion

#region Obtain authentication information

# GUID of the directory tenant
$TenantId = (Get-AzContext).Tenant.Id

Write-Output -InputObject "TenantId: $($TenantId)"
Write-Output -InputObject ""
Write-Output -InputObject "ApplicationName: $($SPNADFSApp.DisplayName)"
Write-Output -InputObject ""
Write-Output -InputObject "ApplicationId: $($SPNADFSApp.ApplicationId.Guid)"
Write-Output -InputObject ""
Write-Output -InputObject "ClientSecret: $($SPNObject.ClientSecret)"
Write-Output -InputObject ""
Write-Output -InputObject "Admin ARM Endpoint: $($AzureStackAdminArmEndpoint)"

#endregion

#region Verify if SPN can authenticate to Azure Stack Hub Admin Management Endpoint

Write-Output -InputObject "Verify if SPN can authenticate to Azure Stack Hub Admin Management Endpoint"

$null = Clear-AzContext -Force

$null = Connect-AzAccount -Environment $EnvironmentName -ServicePrincipal -Tenant $TenantId -Credential $SPNCreds

if (((Get-AzContext).Subscription).Name -notlike "Default Provider Subscription") {

    throw "Failed to obtain access to the 'Default Provider Subscription'. Please verify the SPN has been assigned the '$($AzureStackRole)' role for the 'Default Provider Subscription'."

} else {

    Write-Output -InputObject "Your SPN can successfully authenticate with ARM Endpoint $($AzureStackAdminArmEndpoint) and has got access to the 'Default Provider Subscription'"

}

#endregion

#region Remove sessions

if ($PepSession) {

    Write-Output -InputObject "Removing PSSSession to the Privileged Endpoint"

    Remove-PSSession -Session $PepSession

}

$CheckContext = Get-AzContext | Where-Object { $_.Environment -like $EnvironmentName }

if ($CheckContext) {

    Write-Output -InputObject "Disconnecting from AzS Hub Admin Management Endpoint: $($CheckContext.Environment.ResourceManagerUrl)"

    $null = Disconnect-AzAccount

}

#endregion
