Azure Local Dell Solution Builder Extensions Release Notes (Dell 2512)

Overview

Solution Builder Extensions (SBE) for Azure Local. Firmware, Driver, and WDAC Supplemental policy for lifecycle management for Azure Local instances running on Dell AX servers.

SBE Release Version	Download links	Supported Servers	Driver and Firmware versions	HCI OS Version	Supported Solution Version
4.2.2512.1616	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=52Y76	AX-660 AX-760 AX-4510C AX-4520C APEX MC-660 APEX MC-760 APEX MC-4510C APEX MC-4520C	Azure Local Support Matrix for 16G (2512) \| Solutions for Microsoft Azure Azure Local Support Matrix for AX-4500 (2512) \| Solutions for Microsoft Azure	24H2	12..1002. 12..1001.
4.2.2512.1514	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=DTD2M	AX-650 AX-750 AX-6515 AX-7525	Azure Local Support Matrix for 14G-15G (2512) \| Solutions for Microsoft Azure	24H2	12..1002. 12..1001.
4.2.2512.1403	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=VJ48M	AX-640 AX-740xd	Azure Local Support Matrix for 14G-15G (2512) \| Solutions for Microsoft Azure	24H2	12..1002. 12..1001.

Important Caveats

NVIDIA ConnectX NIC resets have been observed by customers under certain workloads. Affected driver version 25.1.26647.0 and corresponding firmware was introduced in the SBE 4.2.2506.n. SBE 4.2.2509.n and 4.2.2512.n will downgrade the NVIDIA ConnectX driver to version 24.4.26429.0, but the ConnectX firmware must be manually downgraded prior to installing SBE 4.2.2512.n. For details and instructions, see KB000376360.
Dell Micron 7450 and 7500 NVMe SSDs occasionally enter a panic state. For details and instructions, see KB000368482. From the SBE table above, find the version relevant to your product and install the SBE with updated firmware that resolves the defect for the Micron 7450 and 7500 drives.
SBE versions 4.2.2512.1616 and 4.2.2512.1514 include the same BIOS version as previously released SBE versions 4.2.2509.1625 and 4.1.2509.1516 for the 16G, 45n0c, AX-650, and AX-750. New Azure Local instance deployments may have newer BIOS versions as listed in the Dell 2512 support matrix. The installation of SBE 4.2.2512.n will not downgrade the BIOS version in this case. The supported BIOS versions are listed in the Dell 2512 support matrix.

New for This Release

SBE 4.2.2512.1616

Driver and Firmware 2512 Update
Added server component health checks
Added checks for downloading the latest SBE discovery manifest during updates that use automated SBE download
Added support for APEX MC branded nodes
To install this SBE version, Azure Local instances that are already deployed must be running solution version 12.*.1001.* or 12.*.1002.*

SBE 4.2.2512.1514

Driver and Firmware 2512 Update
Added server component health checks
Added checks for downloading the latest SBE discovery manifest during updates that use automated SBE download
To install this SBE version, Azure Local instances that are already deployed must be running solution version 12.*.1001.* or 12.*.1002.*

SBE 4.2.2512.1403

Driver and Firmware 2512 Update
Added server component health checks
Added checks for downloading the latest SBE discovery manifest during updates that use automated SBE download
To install this SBE version, Azure Local instances that are already deployed must be running solution version 12.*.1001.* or 12.*.1002.*

Prerequisites

Update Firmware and Drivers Prior to Azure Local Instance Deployment

Drivers and firmware need to be installed on the servers that will be the instance members prior to deployment from the Azure Portal or using an ARM Template. This requirement is independent of the installation of the SBE. The machines imaged with Dell provided golden image will include the required Dell provided Out-of-Box drivers, but the firmware versions must still be validated and possibly updated prior to the instance deployment. The most current driver and firmware versions listed in the support matrix are recommended.

The Azure Local support matrix for Dell AX servers can be found here, Support Matrix | Solutions for Microsoft Azure

iDRAC Access from Host OS

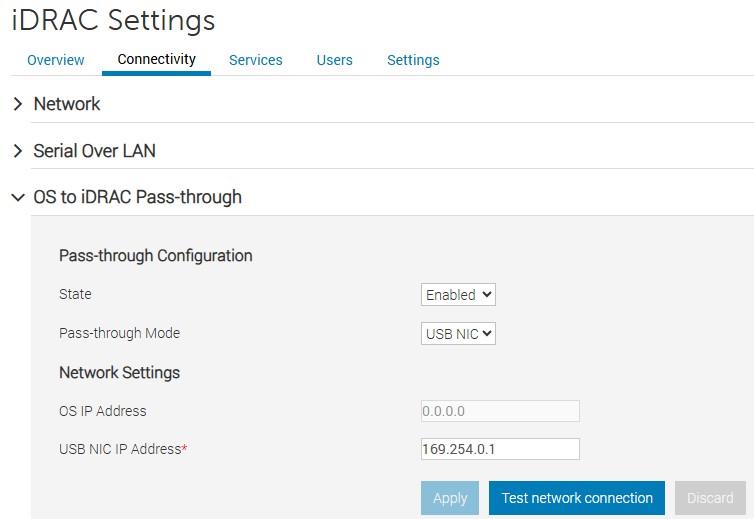

The iDRAC pass-through NIC must be enabled and have an IP address assigned to it. iDRAC pass-through NIC is enabled by default and has an APIPA (Automatic Private IP Addressing) IP address assigned. This IP address must be accessible by the iDRAC NIC Remote NDIS Compatible Device in the host operating system. This is a dedicated link to the host OS and cannot be accessed outside the host OS.

iDRAC access health checks are introduced starting with the December 2024 SBE releases. These health checks verify that the required iDRAC access has been implemented on each server that will be an instance member. The iDRAC access health checks run automatically as part of the standard built-in SBE health checks. These health checks must complete successfully for the SBE installation to proceed. Failure remediation instructions are provided in case the health check fails.

Manual iDRAC Access Verification

The following procedures provide a manual method for verifying the required iDRAC access. The iDRAC access health checks provide automated and more comprehensive verification method.

The iDRAC NIC Remote NDIS Compatible Device in the host operating system is used by the SBE CAU plug-in to update firmware. This NIC must be enabled and have an IP address assigned to it. By default, this NIC is enabled and has an APIPA IP address assigned to it that can access the iDRAC pass-through IP address. DHCP client should not be disabled on this NIC.

This is a dedicated link to iDRAC from the host OS and cannot be accessed outside the host OS.

The IP address can be obtained using the following PowerShell command:

Get-NetAdapter -InterfaceDescription "Remote NDIS Compatible Device" | Get-NetIPAddress -AddressFamily IPv4 | Select-Object -Property IPAddress

Example:

IPAddress
---------
169.254.0.2

Azure Local instances using Non-Transparent, Unauthenticated Network Proxy

Azure Local instances using non-transparent, unauthenticated network proxy must have the iDRAC pass-through IP address in the network proxy exclusion list. For information on how to configure the non-transparent, unauthenticated network proxy see, Configure proxy settings for Azure Local

The following example shows how to configure the APIPA IP address range 169.254.0.0/16 to be in the network proxy exclusion list.

$NoProxy = "localhost,127.0.0.1,.svc,10.0.0.0/8,172.16.0.0/12,192.168.0.0/16,.contoso.com,node1,node2,ClusterName,169.254.0.0/16"
[Environment]::SetEnvironmentVariable("NO_PROXY", $NoProxy, "Machine")

Download Connector – Automated download of future SBE release

Overview

Download Connector is a component in the SBE (Solutions Builder Extensions) that automates the downloading of new SBE bundles as they become available for your cluster. Once an SBE that includes the Download Connector is installed on your cluster, manually downloading and importing follow-on SBE version is no longer required. The update service will automate the downloading of the next available SBE for your Azure Local instance in a similar manner to how the download of the solution upgrade is automated. The Download Connector is part of the SBE version 4.1.2505.1501 and newer.

SBE versions that include the Download Connector also include system and update health checks that proactively verify the ability of the Download Connector to access the required remote resource when it comes time to download the next SBE for your cluster. System health checks are run once per day and update health checks are run at the initial phase of the update process.

Firewall Requirements

The SBE Download Connector running in the Azure Local instance needs to periodically connect to the internet resources to download SBE bundles for your cluster. The following outbound connectivity is required.

Endpoint Description	Endpoint URL	Port
SBE bundle download	dl.dell.com/*	443
SBE download catalog	downloads.dell.com/filestore/Prod/SbeDownloadCatalog/AX_SBE_Download_Catalog.xml	443
SBE download catalog redirection	aka.ms/DellAzureLocalSBEDownloadCatalog	443
Digicert Certificate Revocation Status	http://crl3.digicert.com/*	80
Digicert Certificate Revocation Status	http://crl4.digicert.com/*	80

Installation

Download and Extract

CAUTION

Steps 3 and 4 must be completed to ensure that the latest SBE Discovery manifest is used.

SBE bundle zip file has the naming convention Bundle_SBE_Dell_AS-HCI-AX-GenerationNumber_VersionNumber.zip.

Download the SBE bundle zip file for your Dell AX server generation using the download link above. The SBE bundles are specific to the AX 14G platforms, AX 15G platforms, and AX 16G platforms
Extract the three SBE files from the SBE bundle zip file. There are two xml files and one zip file. Example:
- SBE_Dell_AS-HCI-AX-16G-45n0c_4.2.2506.1600.xml
- SBE_Dell_AS-HCI-AX-16G-45n0c_4.2.2506.1600.zip
- SBE_Discovery_Dell.xml
Navigate to https://aka.ms/AzureStackSBEUpdate/DellEMC and press Ctrl + S to download the SBE_Discovery_Dell.xml file
Replace the SBE_Discovery_Dell.xml file that was in the SBE bundle zip with the file downloaded in step 3

There are two options for installing the SBE package. The SBE package can be installed as part of instance creation or imported after instance creation is successfully completed. The importing method is also used to update the SBE to a newer version when the currently running SBE does not include Download Connector capability.

Automated Download and Extraction

SBE release starting with 4.1.2505.1501 and newer include the Download Connector that automates downloading and extracting the SBE. Manual download and SBE bundle extraction are unnecessary when an SBE with this capability is already installed on the Azure Local instance.

Installing SBE as Part of Instance Creation

Starting with June 2025 Dell golden image release, the SBE files are included in the golden image and already placed in the C:\SBE directory. The following 3 steps do not need to be performed.

On each server that will be an instance member, create the following directory: C:\SBE
Copy the three SBE files to the directory C:\SBE on each server that will be an instance member
Proceed to deploying the instance from the Azure Portal or an ARM template

Importing the SBE After Successful Azure Local Instance Creation

Create a directory on a cluster shared volume (CSV) for sideloading the SBE, e.g., C:\ClusterStorage\Infrastructure_1\SBE\SBE-AX-16G-45n0c_4.2.2506.1600
Copy the three extracted SBE files to this directory
Load the SBE files by running the following command with the path to the directory that holds the three extracted SBE files
```
Add-SolutionUpdate -SourceFolder "C:\ClusterStorage\Infrastructure_1\SBE\SBE-AX-16G-45n0c_4.2.2506.1600"
```
Check the state of the SBE that was just added. The state needs to be Ready.
```
Get-SolutionUpdate | Where-Object -Property PackageType -EQ "SBE"
```
Verify that the Azure Local instance is in a healthy state and is ready for the SBE installation by running the following commands on one of the Azure Local instance machines:
```
Get-SolutionUpdate | Where-Object { $_.State -imatch "Ready" -and $_.PackageType -eq "SBE" } | Start-SolutionUpdate -PrepareOnly
```
Wait for the health check to complete. The solution update state will report HealthChecking while the health check is in progress.

After the health check completes, run the following command if the solution update state reports HealthCheckFailed:

$Result = (Get-SolutionUpdate | Where-Object {$_.State -imatch "Ready" -and $_.PackageType -eq "SBE"}).HealthCheckResult

$Result | Where-Object { ($_.Status -ne "SUCCESS" -and $_.Severity -eq "CRITICAL" ) } | Format-List -Property Title, Status, Severity, Description, Remediation, TargetResourceName, TargetResourceType

All tests with Critical severity must have the Success status before continuing to the next step.

Start the SBE installation by running the following command:

Get-SolutionUpdate | Where-Object { $_.State -imatch "Ready" -and $_.PackageType -eq "SBE" } | Start-SolutionUpdate

The SBE installation progress can be checked by running the following command:

Get-SolutionUpdate | Where-Object -Property PackageType -EQ "SBE" | Format-List -Property ResourceID, Description, State, SBEVersion, UpdateStateProperties, HealthState

For more information see, Update Azure Local via PowerShell

Known Issues

SBE Installation May Fail With Driver CAU Plug-In Error When Attempting to Delete NVIDIA ConnectX Driver That Is Not Installed

Description

The failure occurs in the driver CAU plug-in when driver downgrade option is specified for a given driver and the driver is not found in the driver store. This failure occurs in the following conditions:

Cluster nodes were not imaged using Dell provided Azure Local golden image
NVIDIA ConnectX NIC is not installed in the cluster nodes
A previous version of an AX SBE is not installed

Workaround

Run the following script on each instance machine after completing step 5 “Verify that the Azure Local instance is in a healthy state and is ready for the SBE installation” in the Importing the SBE After Successful Azure Local Instance Creation section or when the failure is encountered during the SBE installation.

#Run this script on each node in the cluster.

$ConnectXDriverFileName = "mlx5.inf"

$InstalledConnectXDriver = Get-WindowsDriver -Online | Where-Object -Property OriginalFileName -IMatch $ConnectXDriverFileName

if (-not $InstalledConnectXDriver) {

    Write-Output "Out-of-Box NVIDIA ConnectX driver not found on node: $($env:COMPUTERNAME)"
    Write-Output "Checking SBE installation status on cluster: $((Get-Cluster).Name)"

    $SBEWithPackagePaths = Get-SolutionUpdate | Where-Object { ($_.PackageType -eq "SBE") -and ($_.PackagePath -ne $null) -and ($_.PackagePath -notlike "https*") }

    if ($SBEWithPackagePaths) {

        $SBEPackagePath = ($SBEWithPackagePaths | Select-Object -First 1).PackagePath

        $MlxDriverInfBaseFilePath = Join-Path -Path $SBEPackagePath -ChildPath "DriversGE\Network\Mellanox"

        $MlxDriverInfFilePath = Get-ChildItem -Path $MlxDriverInfBaseFilePath -Filter $ConnectXDriverFileName -Recurse

        Write-Output "SBE payload NVIDIA ConnectX driver file path: $($MlxDriverInfFilePath.FullName)"

        if (Test-Path -Path $MlxDriverInfFilePath.FullName) {

            Write-Output "Importing NVIDIA ConnectX driver..."

            pnputil.exe /add-driver $MlxDriverInfFilePath.FullName /install

            if (Get-WindowsDriver -Online | Where-Object -Property OriginalFileName -IMatch $ConnectXDriverFileName) {

                Write-Output "NVIDIA ConnectX driver has been added to the driver store"

            } else {

                Write-Output "NVIDIA ConnectX driver is still not found in the driver store on node: $($env:COMPUTERNAME)"

            }

        } else {

            Write-Output "Failed to resolve path: $($MlxDriverInfFilePath.FullName)"

        }

    } else {

        Write-Output "SBE package path not found"

    }

} else {

    Write-Output "Found NVIDIA ConnectX driver version: $($InstalledConnectXDriver.Version) in the driver store"
    Write-Output "No further action is required on this node"

}

Background

This SBE installation failure is resolved in the Azure Local Solution version 12.2512.1002.* and newer.

The driver CAU plug-in driver downgrade option is used in special cases. Currently, it is only used in the case of NVIDIA ConnectX NIC driver.

Partially Installed SBE Version `4.0.0.0` When SBE Is Installed as Part of Cluster Deployment

Description

Get-SolutionUpdateEnvironment reports partially installed SBE when installing the SBE as part of Azure Local instance deployment. SBE version 4.0.0.0 indicates a partially installed Solution Builder Extension (SBE).

Get-SolutionUpdateEnvironment

ResourceId        : redmond
SbeFamily         : AX-16G-45n0c
HardwareModel     : AX-760
LastChecked       : 08/01/2026 14:09:31
PackageVersions   : {Solution: 12.2512.1002.16, Services: 10.2512.0.9, Platform: 12.2512.0.3021, SBE: 4.0.0.0}
CurrentVersion    : 12.2512.1002.16
CurrentSbeVersion : 4.0.0.0
LastUpdated       :
State             : UpdateAvailable
HealthState       : Success
HealthCheckResult : {Storage Services Physical Disks Summary, Storage Services Physical Disks Summary, Storage Services Physical Disks Summary, Storage Services Physical Disks Summary...}
HealthCheckDate   : 07/01/2026 17:50:07
AdditionalData    : {[SBEAdditionalData, Solution Builder extension is partially installed. Please install the latest Solution Builder Extension provided by your hardware vendor. For more information, see https://aka.ms/SBE.]}

Workaround

Reinstall the same SBE version using the SBE import method or automated download method after Azure Local instance deployment successfully completes.

Background

The SBE driver CAU plug-in expects all drivers and firmware in the SBE payload to be installed on the server during or prior to deployment. However, some of the drivers in the SBE payload may not apply to the server model or components in the server model. Microsoft is aware of this limitation and is working to resolve this issue in a future release.

The partially installed SBE issue, can also occur if a component firmware version installed on the server is different than what is in the SBE payload. The SBE cannot update firmware or drivers during Azure Local instance deployment.

SBE installation will not downgrade drivers that have a newer version than the same driver in the SBE payload

Dell supports the driver and firmware versions listed here, Support Matrix | Solutions for Microsoft Azure

Description

The SBE driver CAU plug-in will not attempt to downgrade installed drivers that are higher version than the ones in its payload unless otherwise specified by Dell.

AMD DRTM (Dynamic Root of Trust for Measurement) Driver Fails to Update on AX AMD Platforms When the DRTM Device Was Originally Enabled at Azure Local Instance Deployment Time and Later Disabled

Description

SBE installation fails because the driver CAU plug-in in the SBE is unable to update the AMD DRTM driver to a newer version that is in the SBE payload. The AMD DRTM driver is one of the AMD Chipset drivers in the SBE package. The AMD DRTM driver update fails because the AMD DRTM setting was originally enabled but later disabled.

Workaround

Verify that the AMD DRTM BIOS setting is on. Turn back on the AMD DRTM setting if it is off.

The DRTM option is in the BIOS configuration: System Security -> TPM Advanced Settings -> AMD DRTM

Make sure to suspend and drain the Azure Local cluster node prior to rebooting the node. Make sure that BitLocker protection is disabled for the boot volume on the cluster node before making BIOS configuration changes. Disable BitLocker if it is enabled for the boot volume C:\ prior to rebooting the server for the BIOS changes to take effect. Reenable BitLocker for the boot drive after the server successfully reboots.

Background

AMD DRTM is an advanced security feature that is available on modern AMD CPUs and is used to protect the secure boot enclaves. The AMD DRTM setting is enabled by default on AX servers with AMD CPUs that support the DRTM feature. AMD DRTM should not be disabled.

Previous Releases

Platform	SBE Bundle Version	Firmware And Driver Payload	Download URL
AX 16G-45n0c	4.2.2509.1625	September 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=CGKK0
AX 15G	4.2.2509.1516	September 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=DTM18
AX 14G	4.2.2509.1411	September 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=D5R9P
AX 16G-45n0c	4.2.2506.1600	June 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=8D3FF
AX 15G	4.2.2506.1506	June 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=P4WF9
AX 14G	4.2.2506.1404	June 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=9F1W7
AX 15G	4.1.2505.1503	March 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=W0R1F
AX 16G-45n0c	4.1.2505.1504	March 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=149T3
AX 15G	4.1.2505.1501	March 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=C5Y7V
AX 16G-45n0c	4.1.2505.1502	March 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=60GPP
AX 15G	4.1.2503.3101	March 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=M13VT
AX 16G	4.1.2503.3102	March 2025 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=T5K74
AX 15G	4.1.2412.1201	December 2024 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=XG1TT
AX 16G	4.1.2412.1202	December 2024 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=PPH7R
AX 15G	4.1.2410.901	September 2024 Driver and Firmware Update	https://www.dell.com/support/home/en-us/drivers/driversdetails?driverid=XNYNG
AX 16G	4.1.2409.1501	September 2024 Driver and Firmware Update	https://www.dell.com/support/home/en-tc/drivers/driversdetails?driverid=6t8nt
AX 15G	4.1.2406.3001	June 2024 Driver and Firmware Update	https://www.dell.com/support/home/en-tc/drivers/driversdetails?driverid=6k6g3
AX 15G	4.1.2405.2001	March 2024 Driver and Firmware Update	https://www.dell.com/support/home/en-tc/drivers/driversdetails?driverid=5WH4H

Feedback

Was this page helpful?

Glad to hear it!

Sorry to hear that.

Last modified January 8, 2026: Add Azure Local SBE Release Notes for 2512 release (#237) (782b6ecf)

Azure Local Dell Solution Builder Extensions Release Notes (Dell 2512)

Overview

Important Caveats

New for This Release

SBE 4.2.2512.1616

SBE 4.2.2512.1514

SBE 4.2.2512.1403

Prerequisites

Update Firmware and Drivers Prior to Azure Local Instance Deployment

iDRAC Access from Host OS

Manual iDRAC Access Verification

Azure Local instances using Non-Transparent, Unauthenticated Network Proxy

Download Connector – Automated download of future SBE release

Overview

Firewall Requirements

Installation

Download and Extract

CAUTION

Automated Download and Extraction

Installing SBE as Part of Instance Creation

Importing the SBE After Successful Azure Local Instance Creation

Known Issues

SBE Installation May Fail With Driver CAU Plug-In Error When Attempting to Delete NVIDIA ConnectX Driver That Is Not Installed

Description

Workaround

Background

Partially Installed SBE Version 4.0.0.0 When SBE Is Installed as Part of Cluster Deployment

Description

Workaround

Background

SBE installation will not downgrade drivers that have a newer version than the same driver in the SBE payload

Description

AMD DRTM (Dynamic Root of Trust for Measurement) Driver Fails to Update on AX AMD Platforms When the DRTM Device Was Originally Enabled at Azure Local Instance Deployment Time and Later Disabled

Description

Workaround

Background

Previous Releases

Feedback

Partially Installed SBE Version `4.0.0.0` When SBE Is Installed as Part of Cluster Deployment
